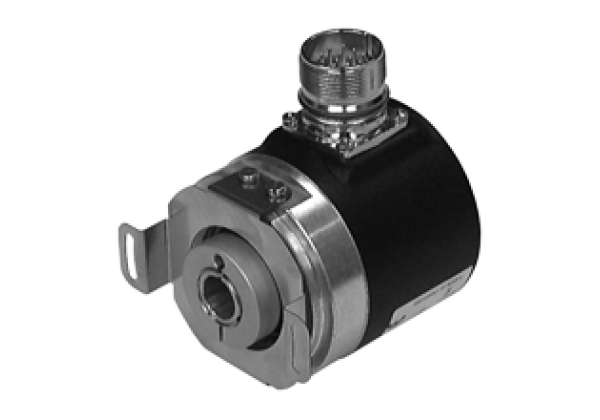

Singleturn absolute rotary encoder FSS58
Brand: Pepperl+Fuchs
Code: FSS58
Industrial standard housing ∅58 mm, 13 Bit singleturn, Output code: gray and binary, Short-circuit proof push-pull output, Inputs for selecting counting direction, LATCH, and PRESET, Enclosure type: 58 mm, Type of shaft: Recessed hollow shaft, Interface type: Push-pull, parallel , short-circuit protected
Datasheet excerpt: Technical data of FSS58
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 10... 30 V DC | |
| No-load supply current | max. 140 mA | |
| Power consumption | ≤ 2 W , without output drivers | |
| Linearity | ± 0.5 LSB | |
| Output code | Gray code, binary code and Gray excess code | |
| Code course (counting direction) | cw ascending (clockwise rotation, code course ascending) | |
| Code preparation time | 0.3 ms | |
| Interface | ||
| Interface type | Push-pull, parallel , short-circuit protected | |
| Resolution | ||
| Single turn | 13 Bit | |
| Load current | 20 mA | |
| Voltage drop | ≤ 2.5 V | |
| Signal voltage | ||
| High | operating voltage minus voltage drop | |
| Low | ≤ 2.8 V | |
| Rise time | 300 ns | |
| De-energized delay | 300 ns | |
| Code change frequency | 400 kHz | |
| Input 1 | ||
| Input type | Selection of counting direction (cw/ccw) | |
| Signal voltage | ||
| High | 10... 30 V | |
| Low | 0... 2 V | |
| Input current | < 6 mA | |
| Signal duration | min. 10 ms | |
| Switch-on delay | ≥ 1 ms | |
| Switch-off delay | ≥ 1 ms | |
| Input 2 | ||
| Input type | Temporary storage (LATCH) | |
| Signal voltage | ||
| High | 10... 30 V | |
| Low | 0... 2 V | |
| Input current | < 6 mA | |
| Signal duration | min. 100 µs | |
| Switch-on delay | < 0.1 ms | |
| Switch-off delay | < 0.1 ms | |
| Input 3 | ||
| Input type | zero-set (PRESET) | |
| Signal voltage | ||
| High | 10... 30 V | |
| Low | 0... 2 V | |
| Input current | < 6 mA | |
| Signal duration | min. 10 ms | |
| Switch-on delay | < 1 ms | |
| Connection | ||
| Connector | type 9424 (M23), 19-pin | |
| Cable | ∅9 mm, 12 x 2 x 0.14 mm2, 2 m | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65 | |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source | |
| Ambient conditions | ||
| Operating temperature | -40... 85 °C (-40... 185 °F) cable models: -30... 70 °C (rigid wiring) -5... 70 °C (flexible wiring) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) (cable models: -5... 70 °C) | |
| Mechanical specifications | ||
| Material | ||
| Combination 1 | housing: powder coated aluminum flange: aluminum shaft: stainless steel | |
| Combination 2 (Inox) | housing: stainless steel flange: stainless steel shaft: stainless steel | |
| Mass | approx. 200 g (combination 1) approx. 400 g (combination 2) | |
| Rotational speed | max. 12000 min -1 | |
| Moment of inertia | 30 gcm2 | |
| Starting torque | ≤ 5 Ncm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 10.0.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 5.1 | 27270502 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC001486 |
| UNSPSC 12.1 | 39121527 |
