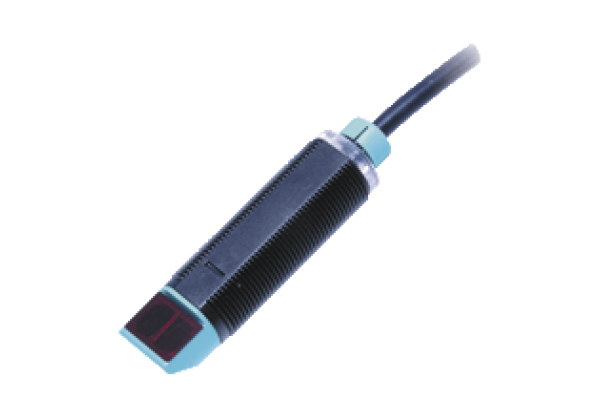

Thru-beam sensor GA18-S/GK18-S/25/115/161
Brand: Pepperl+Fuchs
Code: GA18-S/GK18-S/25/115/161
Thru-beam sensor, M18 threaded housing design, plastic housing, side optical face, 12 m detection range, red light, light on, AC/DC version, NPN-FET output, fixed cable, Efficient Line in a short M18 plastic housing for standard applications, Very high detection range, 4 LEDs indicator for 360° visibility, Sidelookerversion, Universal usage at different power supplies
Datasheet excerpt: Technical data of GA18-S/GK18-S/25/115/161
| Product Description |
|---|
| Thru-beam sensor, M18 threaded housing design, plastic housing, side optical face, 12 m detection range, red light, light on, AC/DC version, NPN-FET output, fixed cable |
| System components | ||
|---|---|---|
| Emitter | GA18-S/115 | |
| Receiver | GK18-S/25/115/161 | |
| General specifications | ||
| Effective detection range | 0... 12 m | |
| Threshold detection range | 17.5 m | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 650 mm at 17.5 m | |
| Opening angle | approx. 2 ° | |
| Optical face | lateral | |
| Ambient light limit | 30000 Lux | |
| Accessories provided | Mounting aids | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 20... 250 V AC/DC | |
| No-load supply current | < 2.5 mA per device | |
| Output | ||
| Switching type | light-on | |
| Signal output | N-channel MOSFET, short circuit protected | |
| Switching voltage | max. 250 V AC/DC | |
| Switching current | max. 200 mA | |
| Voltage drop | ≤ 3.5 V AC/DC | |
| Switching frequency | 50 Hz | |
| Response time | ≤ 10 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | UL 508 | |
| Approvals and certificates | ||
| Protection class | II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Type 1 enclosure For overcurrent protection, install a fuse with a rated current of max. 3 A 250 V AC/DC | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | ABS / PBT | |
| Optical face | PMMA | |
| Mass | approx. 80 g per device | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
