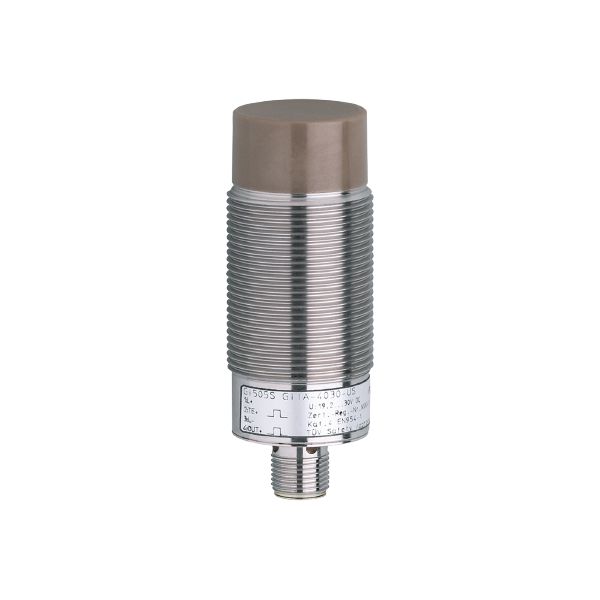

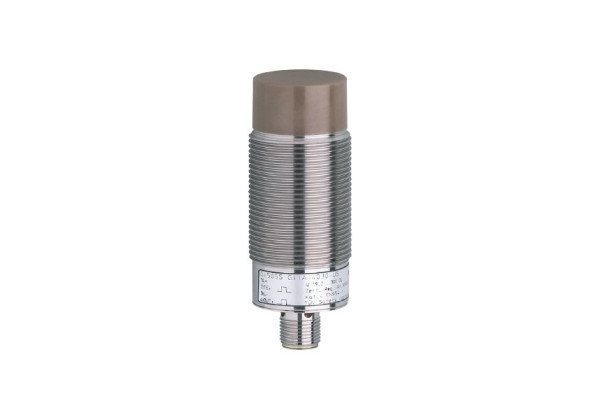

GI506S Fail-safe inductive sensor GIIA-4030-3PT/SIL3/V4A/US

Code: GI506S

For ensuring machine safety
Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849
No special actuator for electronic fail-safe sensors required
Direct connection to safe ifm relays
Series connection of sensors possible

Product characteristics

Output function	clock signal
Enable zone [mm]	6...12
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 80

Application

Special feature	Gold-plated contacts
Type of operation	continuous operation (maintenance-free)
Safety-related function	safe state when undamped
Application	industrial application

Electrical data

Operating voltage [V]	19.2...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	5000

Inputs

Max. input capacitance Ci_max [nF]	2

Outputs

Output function	clock signal
Output data	Interface type B
Short-circuit protection	yes
Max. capacitive load CL_max [nF]	20

Detection zone

Enable zone [mm]	6...12
Safe switching-off distance s(ar) [mm]	30

Response times

Response time to safety request [ms]	20
Response time when approaching the enable zone [ms]	200; (typical 100)

Operating conditions

Applications

class C to EN 60654-1 weatherproof application

Ambient temperature [°C]

0...70

Note on ambient temperature

operational life ≤ 87600 h

Ambient temperature [°C]

10...40

Note on ambient temperature

operational life ≤ 175200 h

Rate of temperature change [K/min]

0.5

Max. relative air humidity [%]

briefly: 5...95 %; permanent: 5...70 %

Air pressure [kPa]

80...106

Ionising radiation

not permissible

Salt spray

Protection

IP 68; IP 69K; (to EN 60529)

Tests / approvals

EMC

IEC 60947-5-2
IEC 60947-5-3
EN 61000-4-2 ESD	6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	20 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 61000-4-8	30 A/m
EN 55011	class B

Shock resistance

IEC 60947-5-2

Vibration resistance

IEC 60947-5-2

Safety classification

Complies with the requirements

ISO 13849-1: 2015 category 3, PL e

IEC 61508 SIL 3

Mission time TM [h]

≤ 175200

Mission time TM (additional indication)

20 years

PFH [1/h]

1E-08

Mechanical data

Weight [g]	263.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 80
Thread designation	M30 x 1.5
Materials	PEEK; stainless steel; O-ring: FKM
