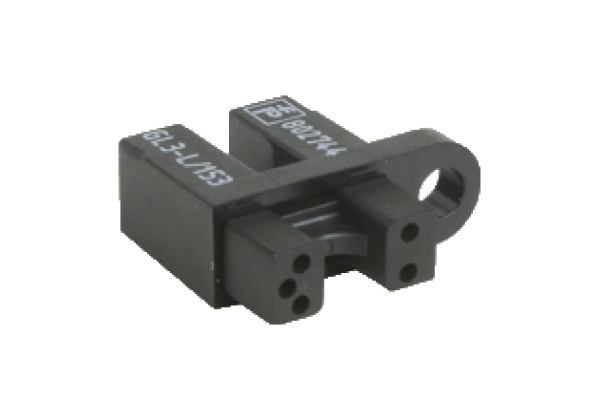

Photoelectric slot sensor GL3-L/153
Brand: Pepperl+Fuchs
Code: GL3-L/153
Miniature photoelectric slot sensor for the detection of small parts, L-shaped housing design, 3.15 mm slot width, infrared light, NPN outputs, fixed cable, Miniature design, Optimized for the detection of small parts, High switching frequency
Datasheet excerpt: Technical data of GL3-L/153
| Product Description |
|---|
| Miniature photoelectric slot sensor for the detection of small parts, L-shaped housing design, 3.15 mm slot width, infrared light, NPN outputs, fixed cable |
| General specifications | ||
|---|---|---|
| Light source | IRED , 940 nm | |
| Light type | IRED | |
| Slot width | 3.15 mm | |
| Slot depth | 3.15 mm | |
| Ambient light limit | 1000 Lux | |
| Electrical specifications | ||
| Operating voltage | 5... 30 V DC | |
| Ripple | 10 % | |
| Emitter | ||
| Light type | 940 nm IR light | |
| Forward voltage | < 1.6 V | |
| Peak forward voltage | 30 V | |
| Forward current | 50 mA | |
| Pulse current | 1 A | |
| Reverse voltage | 5 V | |
| Reverse current | ≤ 10 µA | |
| Power dissipation | 75 mW | |
| Receiver | ||
| Output type | NPN | |
| C-E breakdown voltage | 30 V | |
| E-C breakdown voltage | 5 V | |
| Collector dark current | < 1 µA | |
| Collector DC current | 20 mA | |
| Power dissipation | 75 mW | |
| Output | ||
| Signal output | 1 NPN , photo transistor | |
| Switching voltage | max. 30 V DC | |
| Switching current | 20 mA | |
| Response time | 25 µs | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 85 °C (-4... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Core cross section | 4 x 0.08 mm2 | |
| Housing width | 6.35 mm | |
| Housing height | 15.9 mm | |
| Housing depth | 18.4 mm | |
| Degree of protection | IP30 | |
| Connection | 610 mm, PVC cable , Individual colored wires | |
| Material | ||
| Housing | PC | |
| Mass | 7 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 10.0.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 5.1 | 27270909 |
| ETIM 9.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 5.0 | EC002721 |
| UNSPSC 12.1 | 39121528 |
