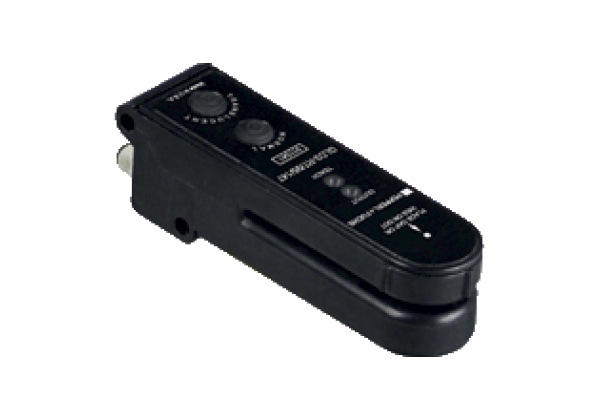

Photoelectric slot sensor GLD3-RT/95/147

Code: GLD3-RT/95/147

GLD3 series, Push-button programmable, Adjustable sensitivity, Detection of paper and foil labels, including translucent varieties

Datasheet excerpt: Technical data of GLD3-RT/95/147

Product Description
GLD3 series

General specifications
Light source		LED
Light type		modulated visible red light
Slot width		3 mm
Slot depth		54 mm
Indicators/operating means
Function indicator		2 LEDs
Electrical specifications
Operating voltage		10... 30 V DC
Ripple		10 %
No-load supply current		≤ 45 mA
Output
Switching type		light/dark on
Signal output		1 NPN and 1 PNP Short circuit and overload protected Reverse polarity protected
Switching current		max. 150 mA
Voltage drop		≤ 1.5 V
Switching frequency		5 kHz
Response time		≤ 100 µs
Conformity
Product standard		EN 60947-5-2
Approvals and certificates
UL approval		cULus
CCC approval		CCC approval / marking not required for products rated ≤36 V
Approvals		CE
	USA	cULus
	Canada	cULus
Ambient conditions
Ambient temperature		-40... 70 °C (-40... 158 °F)
Storage temperature		-40... 70 °C (-40... 158 °F)
Mechanical specifications
Housing width		25 mm
Housing height		27.21 mm
Degree of protection		IP66
Connection		M8 x 1 connector, 4-pin
Material
	Housing	Thermoplastic PPS
	Optical face	zylex
Mass		53.86 g
