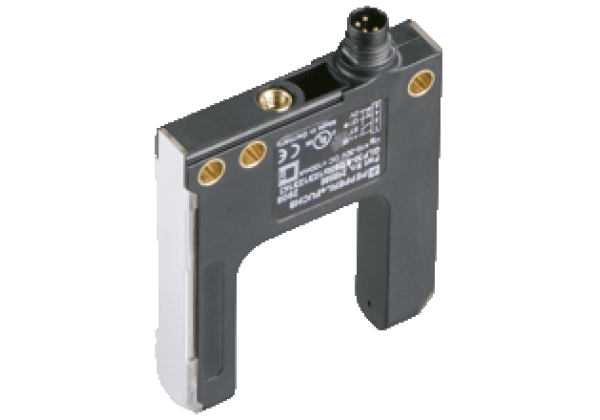

Photoelectric slot sensor GLP30-RT/40b/103/156
Brand: Pepperl+Fuchs
Code: GLP30-RT/40b/103/156
Photoelectric slot sensor, plastic housing, 30 mm slot width, red light, light/dark on, DC version, PNP output, M8 plug, 3-pin, Plastic version, Clearly visible function indicators, Degree of protection IP67
Datasheet excerpt: Technical data of GLP30-RT/40b/103/156
| Product Description |
|---|
| Photoelectric slot sensor, plastic housing, 30 mm slot width, red light, light/dark on, DC version, PNP output, M8 plug, 3-pin |
| General specifications | ||
|---|---|---|
| Light source | LED , 640 nm pulsing | |
| Light type | modulated visible red light | |
| Object size | min. 0.3 mm | |
| Slot width | 30 mm | |
| Slot depth | 34 mm | |
| Ambient light limit | 10000 Lux | |
| Indicators/operating means | ||
| Function indicator | LED yellow , lit when the light beam is interrupted LED green: ready | |
| Control elements | Teach-In key , Sensitivity adjustment and Mode adjustment (NO/NC) | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 30 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.4 V | |
| Switching frequency | 2000 Hz | |
| Response time | 0.25 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II | |
| UL approval | cULus Listed, Class 2 Power Source "For use in NFPA 79 Applications only" Adapters providing field wiring means are available from the manufacturer. Refer to manufacturers information. | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 80 °C (-4... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | M8 connector, 3-pin | |
| Material | ||
| Housing | PC | |
| Optical face | plastic | |
| Mass | 20 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 10.0.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 5.1 | 27270909 |
| ETIM 9.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 5.0 | EC002721 |
| UNSPSC 12.1 | 39121528 |
