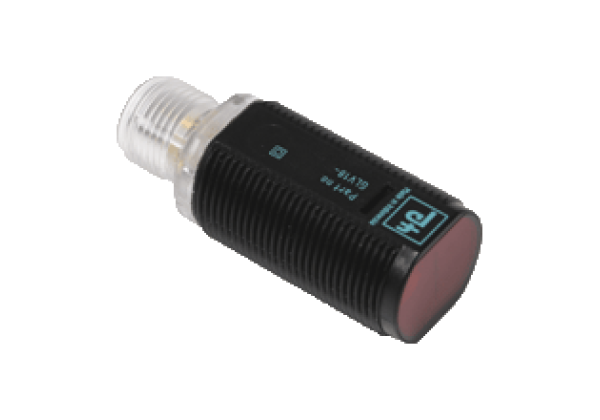

Retroreflective sensor GLV18-55/73/120
Brand: Pepperl+Fuchs
Code: GLV18-55/73/120
Retroreflective sensor with polarization filter, Efficient Line in a short M18 plastic housing for standard applications, Very high detection range, 4 LEDs indicator for 360° visibility, Version with front optical face, DC voltage version
Datasheet excerpt: Technical data of GLV18-55/73/120
| Product Description |
|---|
| Retroreflective sensor with polarization filter |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 4 m | |
| Reflector distance | 0.05... 4 m | |
| Threshold detection range | 5.5 m | |
| Reference target | reflector C110-2 | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 200 mm at 5.5 m | |
| Opening angle | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 920 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| No-load supply current | < 20 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | approx. 10 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
