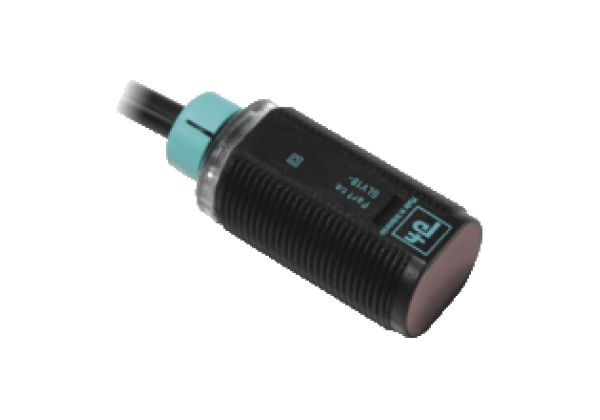

Retroreflective sensor GLV18-6-4594

Code: GLV18-6-4594

Retroreflective sensor, Short design in M18 plastic housing, 4 LEDs indicator for 360° visibility, Optimal price/power ratio

Datasheet excerpt: Technical data of GLV18-6-4594

Product Description
Retroreflective sensor

General specifications
Effective detection range		0... 4 m
Reflector distance		0.05... 4 m
Threshold detection range		5.5 m
Reference target		reflector C110-2
Light source		IRED
Light type		IRED , Modulated light , 880 nm
Polarization filter		no
Diameter of the light spot		approx. 200 mm at 5.5 m
Opening angle		approx. 2 °
Optical face		frontal
Ambient light limit		30000 Lux
Accessories provided		Mounting aids
Indicators/operating means
Operation indicator		LED green, statically lit Power on
Function indicator		LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted
Electrical specifications
Operating voltage		10... 30 V DC
No-load supply current		< 20 mA
Output
Switching type		light-on
Signal output		1 PNP, short-circuit protected, open collector
Switching voltage		max. 30 V DC
Switching current		max. 100 mA
Voltage drop		≤ 1.5 V DC
Switching frequency		500 Hz
Response time		≤ 1 ms
Conformity
Product standard		EN 60947-5-2
Approvals and certificates
Protection class		II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1
UL approval		cULus Listed, Class 2 Power Source
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25... 60 °C (-13... 140 °F)
Storage temperature		-40... 70 °C (-40... 158 °F)
Mechanical specifications
Degree of protection		IP67
Connection		fixed cable 7000 mm
Material
	Housing	PC
	Optical face	PMMA
Mass		approx. 270 g
