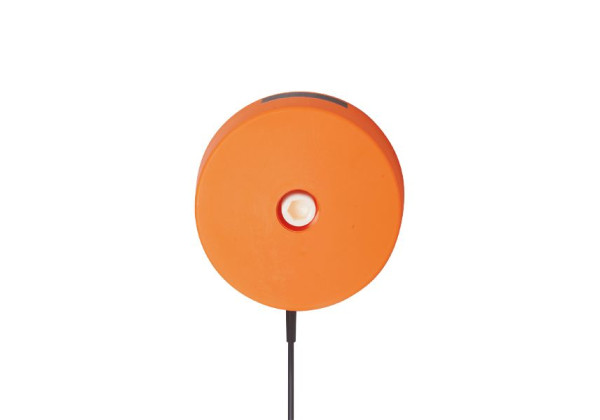

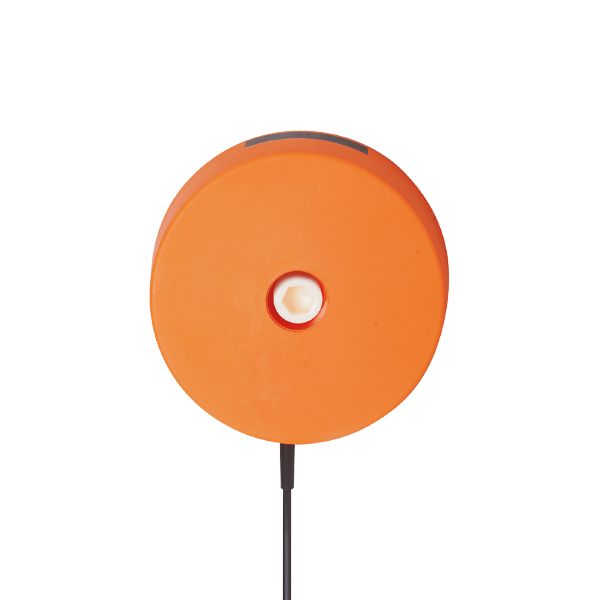

I22002 Inductive area sensor SIY-2120-BBOW

Code: I22002

Long sensing range of 120 mm
Active base with Ø 164 mm
For applications in the steel and metal industries
Easy setting of the sensing range via potentiometer
With AC output for use in AC power mains

Product characteristics

Output function	normally closed
Sensing range [mm]	30...120
Housing	cylindrical
Dimensions [mm]	Ø 164 / L = 63

Electrical data

Frequency AC [Hz]	47...63
Operating voltage [V]	90...250 AC
Protection class	II
Reverse polarity protection	no

Outputs

Output function	normally closed
Max. voltage drop switching output AC [V]	11
Minimum load current [mA]	15
Max. leakage current [mA]	6
Permanent current rating of switching output AC [mA]	200; (250 (...50 °C))
Short-time current rating of switching output [mA]	1500; (10 ms / 0,5 Hz)
Switching frequency AC [Hz]	3
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	30...120
Sensing range adjustable	yes
Factory setting sensing range [mm]	120
Real sensing range Sr [mm]	120 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

Mechanical data

Weight [g]	1231
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 164 / L = 63
Materials	housing: PBT; bottom cover: aluminium

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Remarks

Recommendation: Check the safe functioning of the unit after a short circuit.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.5 mm²
