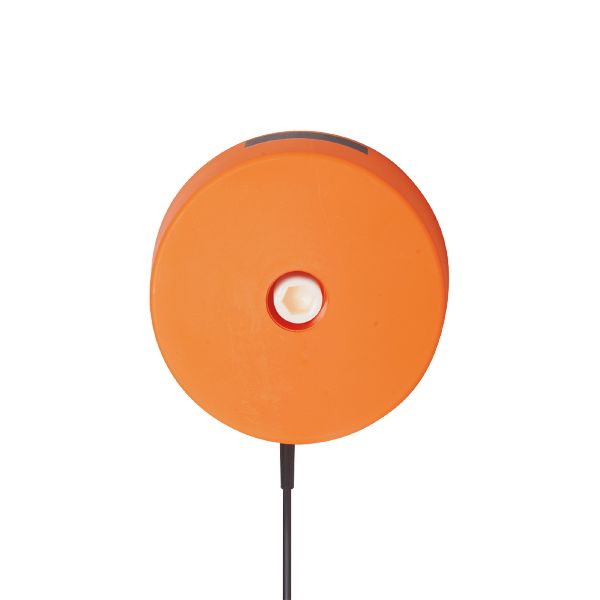

I27001 Inductive area sensor SIY-3120-BPKG

Code: I27001

Long sensing range of 120 mm
Active base with Ø 164 mm
For applications in the steel and metal industries
Easy setting of the sensing range via potentiometer
DC version

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	30...120
Housing	cylindrical
Dimensions [mm]	Ø 164 / L = 63

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	3
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	30...120
Sensing range adjustable	yes
Factory setting sensing range [mm]	120
Real sensing range Sr [mm]	120 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1049

Mechanical data

Weight [g]	1242.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 164 / L = 63
Materials	housing: PBT; bottom cover: aluminium

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

screws: 1 x M16 x 90

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.5 mm²
