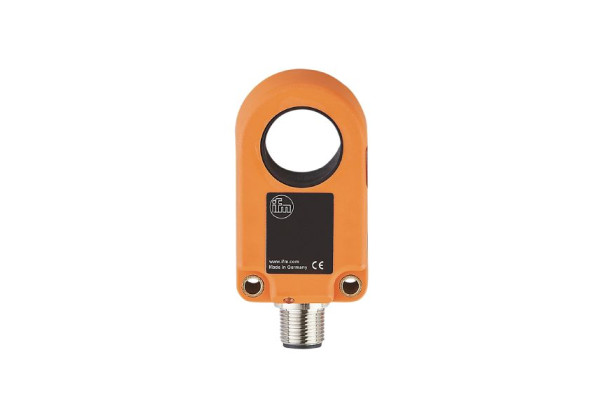

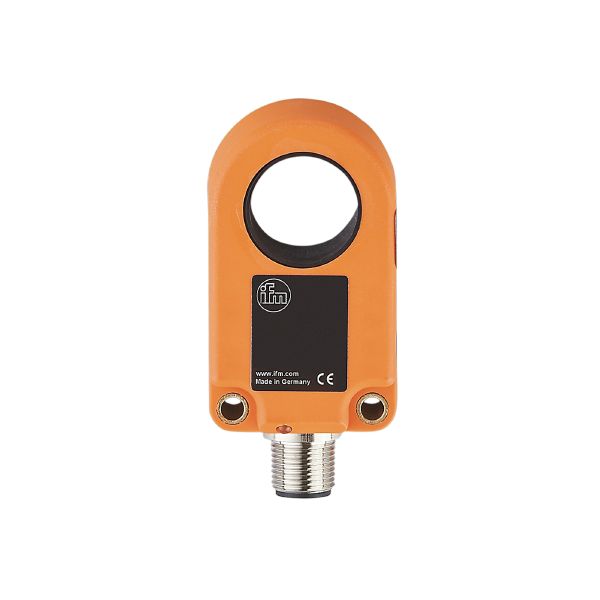

I7R210 Inductive ring sensor I7R3020-FNKG/US-100-INF

Code: I7R210

High resolution
Short response times
Insensitive to dirt
Static operating principle
High protection rating

Product characteristics

Electrical design	NPN
Output function	normally open / normally closed; (selectable)
Housing	circular
Dimensions [mm]	60 x 35 x 20

Application

Operating principle	static

Electrical data

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 11
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	NPN
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Resolution of steel ball (diameter) [mm]	2.5
Max. part speed [m/s]	35

Response times

Pulse stretching [ms]	10...150
Pulse stretching adjustable	yes
Max. fall time [ms]	10
Response time [ms]	< 0.5

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

MTTF [years]

658

UL approval

Ta	-25...70 °C
Enclosure type	Type 4X (indoor use only) / 12 and 13
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	58.5
Housing	circular
Dimensions [mm]	60 x 35 x 20
Inside diameter [mm]	20.1
Materials	housing: PA; ring: POM

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — I7R210-01 — 09.06.2016 —
