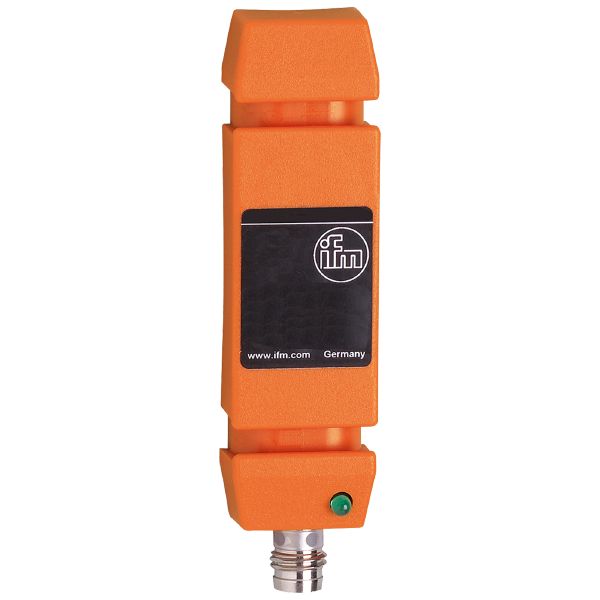

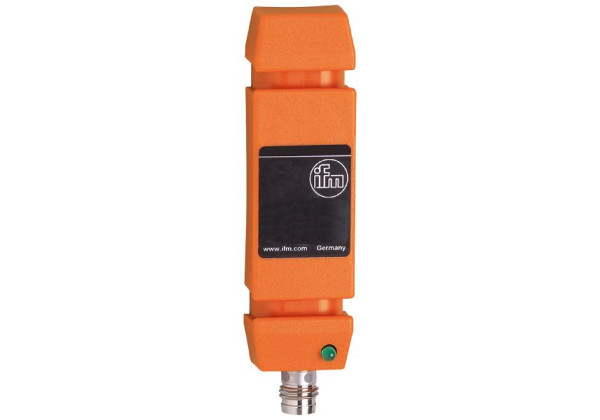

I85000 - efector100-I8-3014-BPKG/AS-610-DPS

Code: I85000

Static operating principle
Reliable detection of objects with very small diameters
Very short response time

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	< 14
Housing	rectangular
Dimensions [mm]	70 x 20 x 12

Application

Operating principle	static

Electrical data

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	< 14
Resolution of steel ball (diameter) [mm]	3
Max. part speed [m/s]	35

Response times

Pulse stretching [ms]	100
Max. fall time [ms]	100
Response time [ms]	< 0.5

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

MTTF [years]

1332

UL approval

Ta	-25...70 °C
Enclosure type	Type 4X (indoor use only) / 12 and 13
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	50
Housing	rectangular
Dimensions [mm]	70 x 20 x 12
Materials	housing: PC

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Accessories

Items supplied

fixing straps: 2

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A
