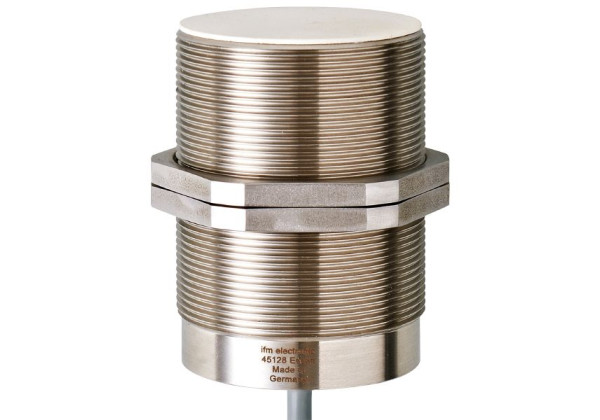

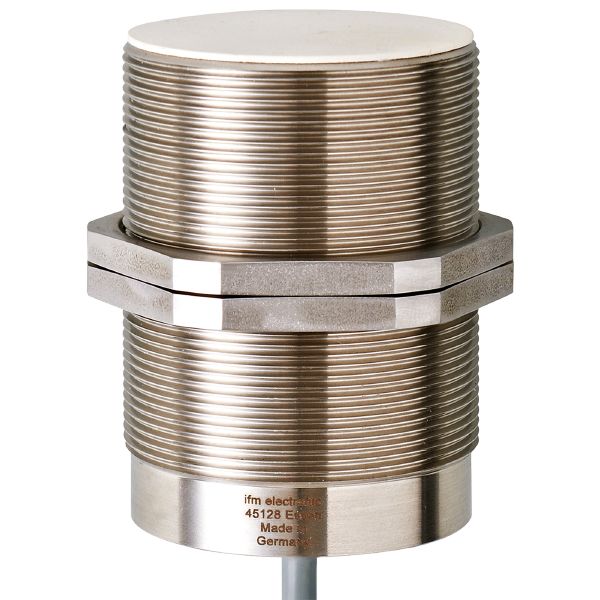

I95045 - efector100-I9-3020ZBPKG/M50/5M/SH

Code: I95045

For use in temperatures up to 180 °C
For applications in the steel and glass industries
Sensor and evaluation unit in one housing
Robust M50 stainless steel housing
Long silicone cable terminals can be outside the critical area

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	20
Housing	threaded type
Dimensions [mm]	M50 x 1.5 / L = 70

Application

Application	high-temperature applications

Electrical data

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.6 / brass: 0.3 / aluminium: 0.2 / copper: 0.1
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	0...180
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	2 kV CD / 4 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V

MTTF [years]

700

Mechanical data

Weight [g]	560.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M50 x 1.5 / L = 70
Thread designation	M50 x 1.5
Materials	housing: stainless steel; sensing face: LCP

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, silicone; highly flexible; 3 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — I95045-00 — 03.06.2014 —
