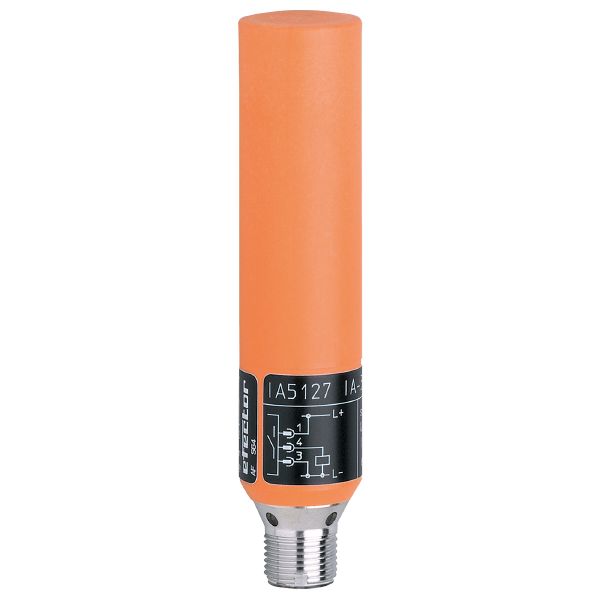

IA5127 Inductive sensor IA-3010-BPKG/US-104-DPS

Code: IA5127

Smooth plastic housing to protect against deposits
PBT housing resistant against pickling solutions
High protection rating for the requirements of harsh industrial environments
Clearly visible indication of the switching status

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	10
Housing	cylindrical
Dimensions [mm]	Ø 20 / L = 93

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	10
Real sensing range Sr [mm]	10 ± 10 %
Operating distance [mm]	0...8.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	3 V

MTTF [years]

1801

UL approval

Ta	0...40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight [g]	75.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 20 / L = 93
Materials	PBT

Displays / operating elements

Display

switching status

4 x 90° LED, yellow

Accessories

Items supplied

Mounting clamps: 1

Mounting clamps:, E10016

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IA5127-00 — 13.04.2023 —
