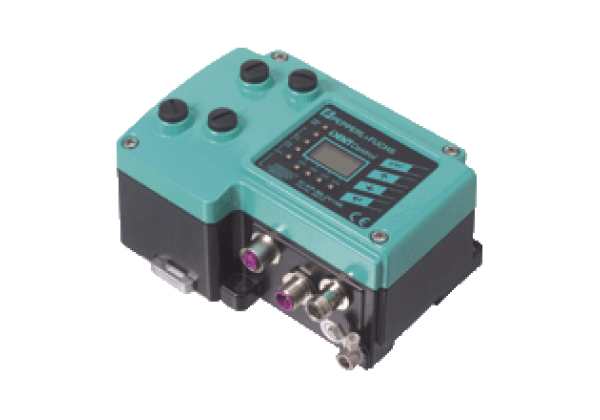

Control interface unit IC-KP-B6-2V15B
Brand: Pepperl+Fuchs
Code: IC-KP-B6-2V15B
Control interface unit IDENTControl with PROFIBUS DP interface
Datasheet excerpt: Technical data of IC-KP-B6-2V15B
| Product Description |
|---|
| Control interface unit IDENTControl with PROFIBUS DP interface |
| General specifications | ||
|---|---|---|
| Number of read/write heads | max. 4 alternative 2 read/write heads and 2 trigger sensors | |
| UL File Number | E87056 | |
| MTBF | 100 a (Operation at +40 °C) | |
| Indicators/operating means | ||
| LEDs 1, 2, 3, 4 | Status indicator for read/write heads green: command at read/write head active yellow: approx. 1 second long, if command was successfully executed | |
| LED PWR/ERR | green: power on red: Hardware fault | |
| LED UL | green: Interface Power ON/OK | |
| LED Bus Error | red: Bus error | |
| LED Data Exch | green: Slave is at state "Data Exchange" | |
| LED DPV1 | Yellow: not used | |
| LC display | two-line multi-function display with 12 characters per line configuration of the control interface and display of connected read/write heads as additional pictograms; easy and direct selection of operating commands and addressing | |
| Button | 4 keys: ESC, up, down and return | |
| Electrical specifications | ||
| Rated operating voltage | 20... 30 V DC , PELV | |
| Ripple | ≤ 10 % at 30 V DC | |
| Current consumption | ≤ 2 A incl. read/write heads | |
| Power consumption | 3.5 W Without read/write heads | |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff | |
| Interface | ||
| Physical | RS-485 | |
| Protocol | PROFIBUS DP acc. to EN 50170 | |
| Transfer rate | 9.6; 19.2; 93.75; 187.5; 500; 1500 kBit/s 3; 6; 12 Mbit/s self-synchronizing | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | IEC 60529 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -30... 80 °C (-22... 176 °F) | |
| Climatic conditions | air humidity max. 96 % Salt spray resistant to EN 60068-2-52 | |
| Shock and impact resistance | Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 | |
| Mechanical specifications | ||
| Housing length | 148 mm | |
| Housing width | 105 mm | |
| Housing height | 73 mm | |
| Degree of protection | IP67 | |
| Connection | Read/write heads: shielded, 4-pin, M12 connector Power supply: M12 connector Protective earth: M6 earthing screw PROFIBUS: 2x M12 connector, B-coded | |
| Material | ||
| Housing | powder coated aluminum | |
| Installation | snap-on to 35 mm standard rail or screw fixing | |
| Mass | approx. 1000 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 10.0.1 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 5.1 | 27280401 |
| ETIM 9.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 6.0 | EC002998 |
| ETIM 5.0 | EC002998 |
| UNSPSC 12.1 | 43211710 |
