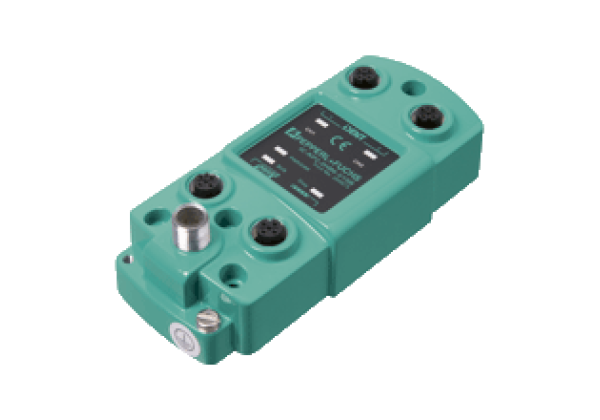

Control interface unit IC-KP2-2HRX-2V1
Brand: Pepperl+Fuchs
Code: IC-KP2-2HRX-2V1
Control interface unit IDENTControl Compactwith serial interface RS-232 and RS-485
Datasheet excerpt: Technical data of IC-KP2-2HRX-2V1
| Product Description |
|---|
| Control interface unit IDENTControl Compactwith serial interface RS-232 and RS-485 |
| General specifications | ||
|---|---|---|
| Number of read/write heads | max. 2 alternatively 1 read/write head and 1 trigger sensor | |
| UL File Number | E87056 | |
| MTBF | 80 a (Operation at +40 °C) | |
| Indicators/operating means | ||
| LEDs 1, 2 | Status indicator for read/write heads | |
| LEDs CH1, CH2 | green: read head detected red: Configuration error | |
| LED PWR/ERR | green: power on red: Hardware fault | |
| LED TxD | green: flashes in rhythm with the transmitted data | |
| LED RxD | green: flashes in rhythm of receiving data | |
| Electrical specifications | ||
| Rated operating voltage | 20... 30 V DC , PELV | |
| Ripple | ≤ 10 % at 30 V DC | |
| Current consumption | ≤ 4 A incl. read/write heads | |
| Power consumption | 2 W Without read/write heads | |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff | |
| Interface 1 | ||
| Interface type | serial | |
| Physical | RS-485 | |
| Protocol | ASCII | |
| Transfer rate | 1200; 2400; 4800; 9600; 19200; 38400 Bit/s | |
| Interface 2 | ||
| Interface type | serial | |
| Physical | RS 232 | |
| Protocol | ASCII | |
| Transfer rate | 1200; 2400; 4800; 9600; 19200; 38400 Bit/s | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2 EN 61000-6-4 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | IEC 60529 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Climatic conditions | air humidity max. 96 % Salt spray resistant to EN 60068-2-52 | |
| Shock and impact resistance | Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6 Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 | |
| Mechanical specifications | ||
| Housing length | 137 mm | |
| Housing width | 62 mm | |
| Housing height | 42 mm | |
| Degree of protection | IP67 | |
| Connection | Read/write heads: shielded, 4-pin, M12 connector Power supply: M12 connector Protective earth: M4 earthing screw RS 232: M12 plug connection RS 485: M12 connector | |
| Material | ||
| Housing | powder coated aluminum | |
| Installation | screw fixing | |
| Mass | approx. 300 g | |
