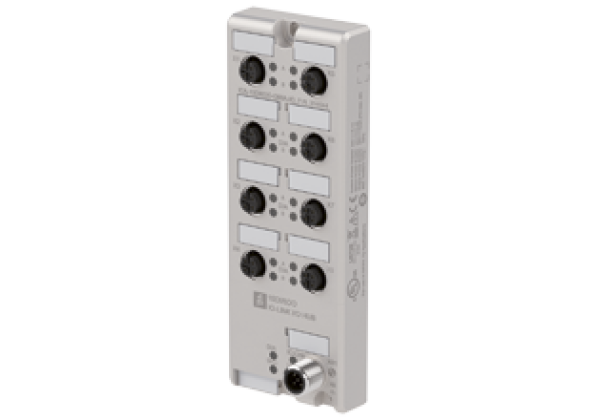

I/O hub ICA-10DI6DO-G60A-IO
Brand: Pepperl+Fuchs
Code: ICA-10DI6DO-G60A-IO
I/O hub with IO-Link interface for 10 digital inputs and 6 digital outputs
Datasheet excerpt: Technical data of ICA-10DI6DO-G60A-IO
| Product Description |
|---|
| I/O hub with IO-Link interface for 10 digital inputs and 6 digital outputs |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| MTTFd | 2111 a | |
| Indicators/operating means | ||
| LED UAUX | Green: Actuator supply voltage OK Red: Actuator supply voltage < 18 V | |
| LED IO-Link | Green: module is switched on, no communication Flashing green: communication OK Red: signal line overload | |
| LED A | Orange: status indicator channel A Red: peripheral error | |
| LED B | White: status indicator channel B Red: peripheral error | |
| LED US | Green: system/sensor supply voltage OK Red: system/sensor supply voltage < 18 V Flashing red: sensor supply voltage overload | |
| Electrical specifications | ||
| Rated operating voltage | 18... 30 V | |
| Nominal voltage | 24 V DC | |
| Nominal current | 4 A | |
| Current consumption | typ. 80 mA | |
| Interface | ||
| Interface type | IO-Link | |
| Device profile | Identification and Diagnosis - I&D | |
| Transfer rate | COM3 (230.4 kbits/s) | |
| IO-Link Revision | 1.1 | |
| Min. cycle time | 2 ms | |
| Process data width | Input 4 Byte Output 4 Byte | |
| SIO mode support | no | |
| Device ID | 0x0F0202 (983554) | |
| Compatible master port type | B | |
| Input | ||
| Number/Type | 10 digital inputs (X1 - X5) , 2-, 3-, 4-wire PNP, DC , Type 3 according to IEC 61131-2 | |
| Sensor supply | Depending on the IO-Link master, max. 500 mA per module | |
| Output | ||
| Number/Type | 6 digital outputs (X6 - X8) , 2-, 3-wire connection | |
| Output rated operating current | Depending on the IO-Link master, max. 500 mA per channel | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | Type 1 according to IEC 61131-2 | |
| Emitted interference | EN 61000-6-2:2005 | |
| Noise immunity | EN 61000-6-4:2007+A1:2011 | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 2000 m | |
| Shock and impact resistance | 50 g, 11 ms, all axes | |
| Vibration resistance | 15 g / 5... 500 Hz | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67/IP69K | |
| Connection | Power supply/IO-Link M12, A-coded Inputs/Outputs M12, A-coded | |
| Material | ||
| Contacts | CuSn, gold-plated CuNi, gold-plated | |
| Housing | Diecast zinc | |
| Plastic parts | PA | |
| Seal | FKM | |
| Mass | 400 g | |
| Construction type | Field housing | |
