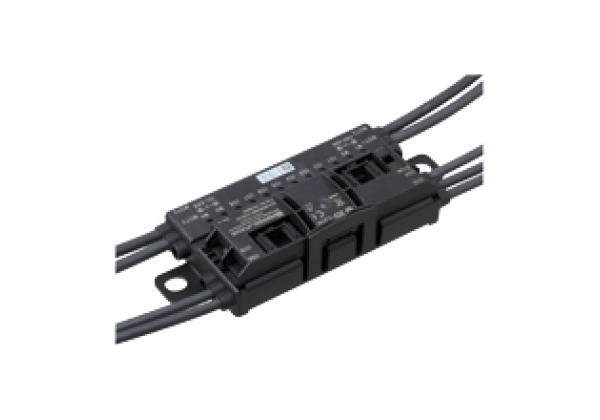

IO-Link motor control module ICA-8DIO4M1-G20-IO
Brand: Pepperl+Fuchs
Code: ICA-8DIO4M1-G20-IO
G20 IO-Link module for digital inputs/outputs, 8 inputs and 8 outputs, 4 connections for roller motors
Datasheet excerpt: Technical data of ICA-8DIO4M1-G20-IO
| Product Description |
|---|
| G20 IO-Link module for digital inputs/outputs, 8 inputs and 8 outputs, 4 connections for roller motors |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 "For use in NFPA 79 Applications only" | |
| MTBF | 90 a | |
| Compatible roller motors | Interroll EC310, Interroll EC5000 24V AI (20W / 35W / 50W), Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC | |
| Indicators/operating means | ||
| LED yellow/red | IO1... IO8: IO-Link status MOT1... MOT4: motor status | |
| Electrical specifications | ||
| Auxiliary voltage | 18... 30 VDC PELV Max. 10 A Current limitation of the supply max. 30 A For UL: Z-type miniature circuit breaker in accordance with UL 1077, max. 20 A, required | |
| Operating voltage | 18... 30 V DC, PELV Max. 2.5 A (IO-Link) Current limitation of the supply max. 4 A | |
| No-load supply current | ≤ 25 mA | |
| Operating current | max. 2.5 A | |
| Interface | ||
| Interface type | IO-Link | |
| IO-Link revision | 1.1 | |
| Device profile | Identification and Diagnosis - I&D | |
| Process data | 8 byte inputs (STD/EXT) 6 byte outputs (STD) 18 byte outputs (EXT) | |
| Vendor ID | 1 (0x0001) | |
| Device ID | Rev. A: 984066 (0x0F0402) (STD) - default 984065 (0x0F0401) (EXT) Rev. B: 984066 (0x0F0402) (STD) 984065 (0x0F0401) (EXT) 984070 (0x0F0406) (STD) - default 984069 (0x0F0405) (EXT) | |
| Data transfer rate | COM3 (230.4 kbits/s) | |
| Min. cycle time | 1.2 ms (STD) 2 ms (EXT) | |
| SIO mode support | no | |
| Compatible master port type | Class A | |
| Input | ||
| Number/Type | 8 Inputs for 3-wire sensors (PNP), DC (IO1... IO8) | |
| Supply | from IO-Link | |
| Current loading capacity | 200 mA , overload and short-circuit protected | |
| Input current | ≤ 5 mA (limited internally) | |
| Switching point | Type 3 according to IEC 61131-2 | |
| Output 1 | ||
| Number/Type | 8 electronic outputs, PNP (IO1 … IO8), overload proof and short-circuit proof | |
| Supply | from IO-Link | |
| Current | 200 mA per output | |
| Voltage | ≥ (Ue - 1.5 V) | |
| Output 2 | ||
| Number/Type | 4 outputs for DC roller motors (MOT1... MOT4) | |
| Supply | via UPWR | |
| Current loading capacity | 3.5 A (continuous), 5 A (< 2 s), max. 7.5 A (< 0.3 s) per motor Total current (continuous) max. 10 A per device | |
| Overload protection | Fuse 5 A, I2t = 53.7 A2s per motor | |
| Signal level | Speed: US = 0.3 … 10 V in no-load operation Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Direction of rotation: Digital output PNP UD low = high resistance UD high ≥ (UPWR -0.5 V) Current-carrying capacity 400 mA, overload proof and short-circuit proof | |
| Fault level | Motor fault: Digital input NPN 0 (no error) ≥ 125 µA 1 (error) ≤ 25 µA | |
| Output 3 | ||
| Number/Type | 4 electronic outputs, PNP (DIR/OUT1 … DIR/OUT4), overload and short-circuit proof | |
| Supply | via UPWR | |
| Current | 400 mA per output | |
| Voltage | ≥ (UPWR - 0.5 V) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 EN 55011:2016 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 61131-9:2013 | |
| Input | EN 61131-2:2007 | |
| Communication interface | IEC 61131-9 / IO-Link V1.1.2 | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005, EN 61326-1:2006 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Relative humidity | 85 % non-condensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks | |
| Vibration resistance | 0.35 mm / 5 g 5... 500 Hz | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP54 according to EN 60529 | |
| Connection | 24 V power (PWR): Piercing technology, black flat cable IO-Link: M12 round plug connector in accordance with EN 61076-2-101, LM type (4-pin, connector contacts, screw-locking, A-coded) Female connector: LF type or similar Inputs/outputs (IO), motors (MOT): M8 round plug connector in accordance with EN 61076-2-104 IO: LF type (4-pin, bushing contacts, screw-locking, A-coded) Female connector: LM type or similar MOT: NF type (5-pin, bushing contacts, snap-locking, B-coded) Female connector: NM type or similar | |
| Mass | 310 g | |
| Mounting | 2 clips with ∅ 8 mm drill hole The module must be secured to a solid, continuous surface using the two lugs | |
| Cable length | 1 m (IO-Link) 0.5 m (IO1/2, IO5/6), 0.65 m (IO3/4, IO7/8) 0.5 m (MOT1, MOT3); 0.4 m (MOT2, MOT4) max. 10 m | |
| Note | The flat cable routing is designed for 100 actuation cycles | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
