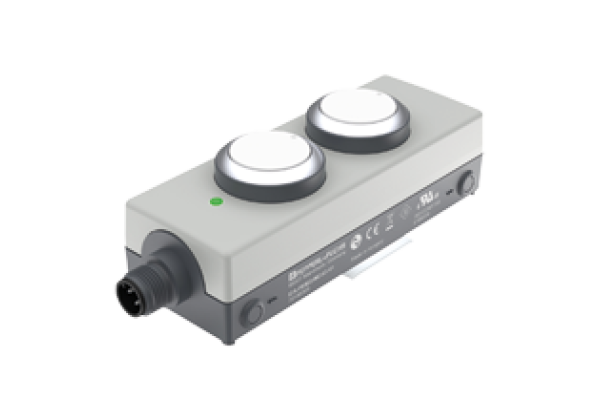

Push button box ICA-F85E2-MC-IO-V1
Brand: Pepperl+Fuchs
Code: ICA-F85E2-MC-IO-V1
Programmable push button box with IO-Link interface
Datasheet excerpt: Technical data of ICA-F85E2-MC-IO-V1
| Product Description |
|---|
| Programmable push button box with IO-Link interface |
| General specifications | ||
|---|---|---|
| UL File Number | E198304 | |
| Indicators/operating means | ||
| Button | Two buttons, RGB illumination, freely programmable | |
| Electrical specifications | ||
| Rated operating voltage | 18... 30 V | |
| Operating current | ≤ 100 mA | |
| Protection class | III | |
| Nominal voltage | 24 V | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| IO-Link revision | 1.1 | |
| Device profile | Identification and Diagnosis - I&D Firmware update | |
| Process data | Input: 8 bit - Input signals: 2 bit - Diagnostic signals: 1 bit Output: 16 bit - Control signals: 6 bit - Control values: 6 bit | |
| Vendor ID | 1 (0x0001) | |
| Device ID | 985089 (0x0F0801) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 5 ms | |
| SIO mode support | no | |
| Compatible master port type | Class A , Class B | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | DIN EN 61000-6-2 DIN EN 61000-6-3 DIN EN 61131-9 | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529 | |
| Pollution degree | DIN EN 61010-1 | |
| Communication interface | DIN EN 61131-9 / IO-Link V1.1.2 | |
| Shock resistance | IEC 60068-2-27 | |
| Vibration resistance | IEC 60068-2-6 | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Storage temperature | -40... 80 °C (-40... 176 °F) | |
| Shock and impact resistance | 50 g, 11 ms, half sine wave 5 g, 10... 500 Hz | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | M12 x 1 connector, 4-pin, A-coded | |
| Mass | 121 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242602 |
| ECLASS 12.0 | 27242602 |
| ECLASS 11.0 | 27242602 |
| ECLASS 10.0.1 | 27242602 |
| ECLASS 9.0 | 27242602 |
| ECLASS 8.0 | 27242602 |
| ECLASS 5.1 | 27242602 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
