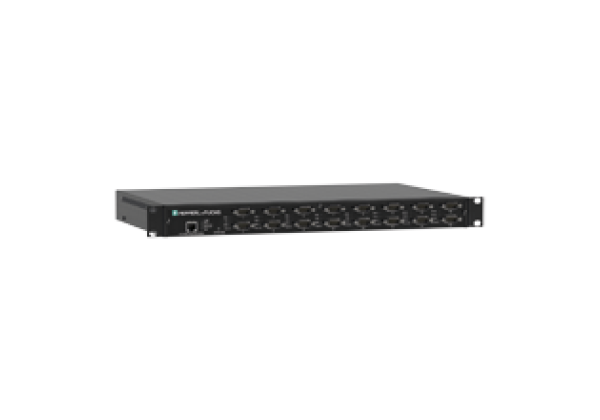

Serial Device Server ICDM-RX/TCP-16DB9/RJ45-RM

Code: ICDM-RX/TCP-16DB9/RJ45-RM

Device Server 16-port rack mount DB9

Datasheet excerpt: Technical data of ICDM-RX/TCP-16DB9/RJ45-RM

Product Description
Device Server 16-port rack mount DB9

General specifications
UL File Number		E185802
Functional safety related parameters
MTBF		15.5 a
Indicators/operating means
LED indication		see manual
Electrical specifications
Rated operating voltage		90... 260 V AC
Interface
Interface type		Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire)
Physical		16 x DB9
Protocol		Raw serial
Supported baud rates		300 bps to 230Kbps
Interface 1
Interface type		Industrial Ethernet
Physical		1 x RJ45
Protocol		TCP/IP
Additional protocols		ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission
Transfer rate		10/100 Mbps
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020
Low voltage
	Directive 2014/35/EU	EN 62368-1:2014
RoHS		EN IEC 63000:2018
Standard conformity
Electrical safety		EN 62368-1:2014-08
Emitted interference		EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32
Noise immunity		EN 55035:2017/A11:2020
Ambient conditions
Ambient temperature		-40... 75 °C (-40... 167 °F)
Storage temperature		-40... 85 °C (-40... 185 °F)
Relative humidity		max. 95 %
Altitude		0... 3048 m
Mechanical specifications
Housing length		438.2 mm
Housing width		275.3 mm
Housing height		44.2 mm
Degree of protection		IP20
Connection		Internal power supply: US and EURO cords Fieldbus: 1 x RJ45 Inputs/outputs: 16 x DB9
Material
	Housing	steel, black coated
Mass		2.9kg
Construction type		Cabinet module
Mounting		Rack mount
