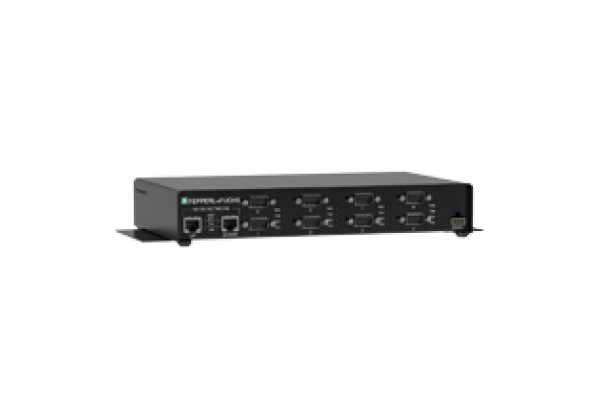

Serial Device Server ICDM-RX/TCP-8DB9/2RJ45-PM
Brand: Pepperl+Fuchs
Code: ICDM-RX/TCP-8DB9/2RJ45-PM
Device Server 8-port panel mount DB9
Datasheet excerpt: Technical data of ICDM-RX/TCP-8DB9/2RJ45-PM
| Product Description |
|---|
| Device Server 8-port panel mount DB9 |
| General specifications | ||
|---|---|---|
| UL File Number | E185802 | |
| Functional safety related parameters | ||
| MTBF | 31.1 a | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Electrical specifications | ||
| Rated operating voltage | 9... 30 V DC | |
| Nominal voltage | 24 V DC | |
| Interface | ||
| Interface type | Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire) | |
| Physical | 8 x DB9 | |
| Protocol | Raw serial | |
| Supported baud rates | 300 bps to 230Kbps | |
| Interface 1 | ||
| Interface type | Industrial Ethernet | |
| Physical | 2 x RJ45 | |
| Protocol | TCP/IP | |
| Additional protocols | ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission | |
| Transfer rate | 10/100 Mbps | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 | |
| RoHS | EN IEC 63000:2018 | |
| Standard conformity | ||
| Degree of protection | NEMA TS2 | |
| Electrical safety | CSA C22.2 No. 60950 / UL60950 | |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | EN 55035:2017/A11:2020 | |
| Ambient conditions | ||
| Ambient temperature | -40... 75 °C (-40... 167 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 3048 m | |
| Mechanical specifications | ||
| Housing length | 275 mm | |
| Housing width | 160 mm | |
| Housing height | 45.7 mm | |
| Degree of protection | IP20 | |
| Connection | Power Supply: screw terminals Fieldbus: 2 x RJ45 Inputs/outputs: Temperature, up to 2 RTDs per unit | |
| Material | ||
| Housing | steel, black coated | |
| Mass | 1.63kg | |
| Construction type | Cabinet module | |
| Mounting | Panel | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
