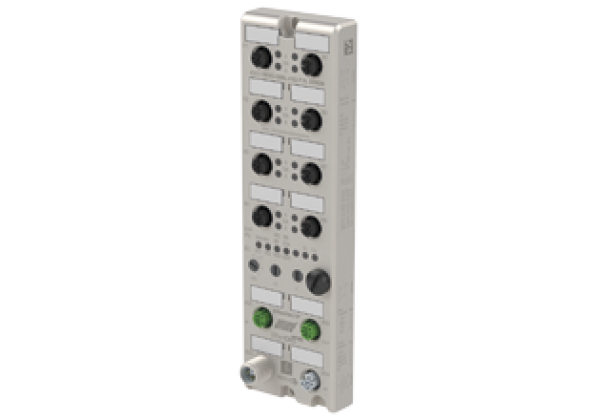

Fieldbus module ICE1-16DIO-G60L-V1D
Brand: Pepperl+Fuchs
Code: ICE1-16DIO-G60L-V1D
Ethernet IO module with 16 configurable digital inputs/outputs
Datasheet excerpt: Technical data of ICE1-16DIO-G60L-V1D
| Product Description |
|---|
| Ethernet IO module with 16 configurable digital inputs/outputs |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Rotary switch | Setting the fieldbus protocol | |
| Electrical specifications | ||
| Rated operating voltage | 18... 30 V | |
| Nominal voltage | 24 V DC | |
| Current consumption | 120 mA | |
| Current loading capacity | Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 9 A per module | |
| Interface 1 | ||
| Interface type | Industrial Ethernet | |
| Physical | M12, D-coded | |
| Protocol | PROFINET IO with media redundancy protocol (MRP) EtherNet/IP with Device Level Ring (DLR) EtherCAT® | |
| Transfer rate | 10/100 Mbps | |
| Inputs/Outputs | ||
| Number/Type | 16 digital inputs/outputs, configurable Inputs: 2-, 3-, 4-wire PNP, DC, supply from US Outputs: 2-wire PNP, DC, supply from UL No galvanic isolation between US and UL short-circuit protected | |
| Sensor supply | max. 500 mA Per port (X1 - X8) via US | |
| Output rated operating current | max. 2 A per channel / 4 A Per port (X1 - X8) via UL | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | EN 61131-2:2004 | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Cold start temperature | -40 °C (-40 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 2000 m | |
| Shock and impact resistance | 50 g, 11 ms, all axes | |
| Vibration resistance | 15 g at 5 - 500 Hz | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | PA | |
| Degree of protection | IP65/IP67/IP69K | |
| Connection | Power Supply M12, L-coded Fieldbus M12, D-coded Inputs M12, A-coded | |
| Material | ||
| Contacts | CuSn, gold-plated CuNi, gold-plated | |
| Housing | Diecast zinc | |
| Seal | FKM | |
| Mass | 500 g | |
| Tightening torque, fastening screws | 1 Nm | |
| Tightening torque, cable gland | 0.6 Nm | |
| Construction type | Field housing | |
| Tightening torque of clamping screws | 0.5 Nm | |
