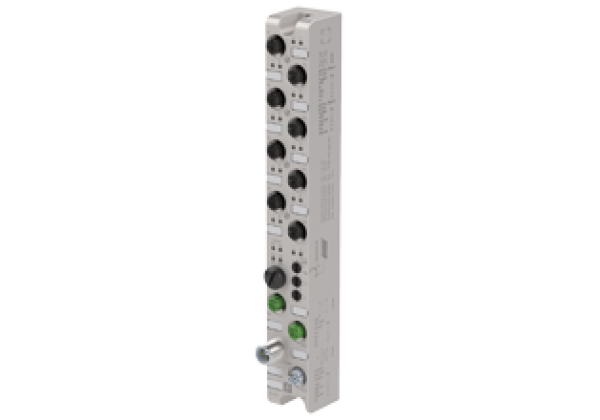

IO-Link master ICE1-8IOL-G30L-V1D
Brand: Pepperl+Fuchs
Code: ICE1-8IOL-G30L-V1D
Ethernet IO-Link module with 8 inputs/outputs
Datasheet excerpt: Technical data of ICE1-8IOL-G30L-V1D
| Product Description |
|---|
| Ethernet IO-Link module with 8 inputs/outputs |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| MTTF | 604 a | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Rotary switch | Setting the fieldbus protocol | |
| Electrical specifications | ||
| Rated operating voltage | 18... 30 V | |
| Nominal voltage | 24 V DC | |
| Current consumption | typ. 180 mA | |
| Current loading capacity | Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 9 A per module | |
| Galvanic isolation | between US and UL | |
| Interface 1 | ||
| Interface type | Industrial Ethernet | |
| Physical | M12, D-coded | |
| Protocol | PROFINET IO with media redundancy protocol (MRP) EtherNet/IP with Device Level Ring (DLR) | |
| Transfer rate | 10/100 Mbps | |
| Inputs/Outputs | ||
| Number/Type | 4 x IO-Link Class A (X1 - X4) 4 x IO-Link Class B (X5 - X8) configurable as: max. 8 IO-Link and 4 digital inputs max. 12 digital inputs max. 8 digital outputs and 4 digital inputs short-circuit protected | |
| Sensor supply | max. 500 mA per port (X1 - X8) via L+ (pin 1) | |
| Output rated operating current | max. 500 mA per port (X1 - X8) Via C/Q (pin 4) In addition, a maximum of 2 A per port (X5 – X8) Via UAux (pin 2) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | Type 1 according to IEC 61131-2 | |
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | EN 61131-2:2004 | |
| Ambient conditions | ||
| Ambient temperature | -20... 70 °C (-4... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Cold start temperature | -40 °C (-40 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 2000 m | |
| Shock and impact resistance | 50 g, 11 ms, all axes | |
| Vibration resistance | 15 g at 5 - 500 Hz | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | PA | |
| Housing length | 33.4 mm | |
| Housing width | 30 mm | |
| Housing height | 225 mm | |
| Degree of protection | IP65/IP67/IP69K | |
| Connection | Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded | |
| Material | ||
| Contacts | CuSn, gold-plated CuNi, gold-plated | |
| Housing | Diecast zinc | |
| Seal | FKM | |
| Mass | 480 g | |
| Tightening torque, fastening screws | 1 Nm | |
| Tightening torque, cable gland | max. 0.5 Nm | |
| Construction type | Field housing | |
| Tightening torque of clamping screws | 0.5 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
