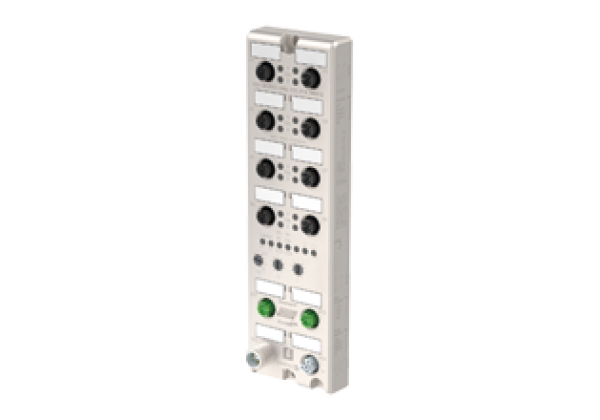

IO-Link master ICE11-8IOL-G60L-V1D
Brand: Pepperl+Fuchs
Code: ICE11-8IOL-G60L-V1D
Ethernet IO-Link module with eight IO-Link ports
Datasheet excerpt: Technical data of ICE11-8IOL-G60L-V1D
| Product Description |
|---|
| Ethernet IO-Link module with eight IO-Link ports |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Rotary switch | Setting the fieldbus protocol | |
| Electrical specifications | ||
| Rated operating voltage | 20... 30 V | |
| Nominal voltage | 24 V DC (SELV/PELV) | |
| Current consumption | typ. 160 mA ± 20 % at nominal voltage | |
| Current loading capacity | max. 16 A per module | |
| Interface | ||
| Interface type | Industrial Ethernet | |
| Physical | M12, D-coded | |
| Protocol | PROFINET IO , EtherNet/IP , EtherCAT® , CC-Link IE Field Basic , MODBUS TCP | |
| Transfer rate | Fast Ethernet 10/100 Mbps , full duplex | |
| Inputs/Outputs | ||
| Number/Type | 8 x IO-Link Class A (X1 – X8) Configurable as: Max. 8 IO-Link and 8 digital inputs/outputs Max. 16 digital inputs/outputs short-circuit protected | |
| Sensor supply | max. 4 A per port (X1 - X8) via L+ (pin 1) | |
| Output rated operating current | max. 500 mA per port (X1 - X8) via C/Q (Ch. A/pin 4) max. 2 A per port (X1 - X8) via DO (Ch. B/pin 2) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | Type 1 according to IEC 61131-2 | |
| Shock resistance | EN 61131-2:2004 | |
| Approvals and certificates | ||
| UL approval | ||
| Maximum permissible operating current | max. 9 A | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 2000 m | |
| Shock and impact resistance | 50 g, 11 ms, all axes | |
| Vibration resistance | 15 g at 5 - 500 Hz | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | PA | |
| Degree of protection | IP65/IP67/IP69K | |
| Connection | Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded | |
| Material | ||
| Contacts | CuSn, gold-plated CuNi, gold-plated | |
| Housing | Diecast zinc | |
| Seal | FKM | |
| Mass | 480 g | |
| Tightening torque, fastening screws | 1 Nm | |
| Tightening torque, cable gland | 0.5 Nm | |
| Construction type | Field housing | |
| Tightening torque of clamping screws | 0.5 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
