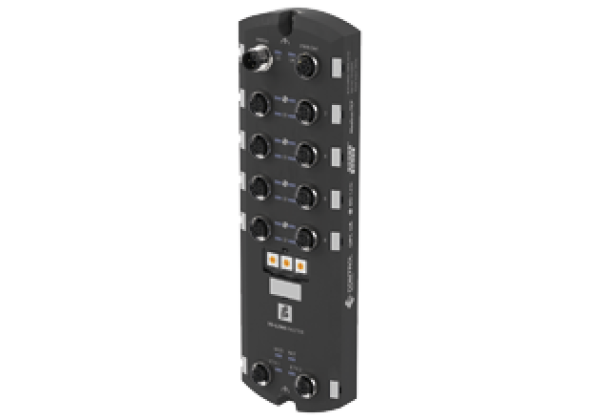

IO-Link master (EIP/MOD) ICE2-8IOL-G65L-V1D
Brand: Pepperl+Fuchs
Code: ICE2-8IOL-G65L-V1D
EtherNet/IP IO-Link master with 8 inputs/outputs
Datasheet excerpt: Technical data of ICE2-8IOL-G65L-V1D
| Product Description |
|---|
| EtherNet/IP IO-Link master with 8 inputs/outputs |
| General specifications | ||
|---|---|---|
| UL File Number | E360395 | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Rotary switch | Setting the IP address | |
| Electrical specifications | ||
| Rated operating voltage | 20... 30 V DC | |
| Nominal voltage | 24 V DC | |
| Current consumption | typ. 120 mA | |
| Current loading capacity | Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 6.7 A per module | |
| Galvanic isolation | between US and UA | |
| Interface 1 | ||
| Interface type | Industrial Ethernet | |
| Physical | M12, D-coded | |
| Protocol | EtherNet/IP + Modbus TCP + OPC UA + MQTT Modbus max PDI: 33 times / sec OPC UA max PDI update rate: 20 times / sec MQTT max PDI update rate: 10 times / sec | |
| Transfer rate | 10/100 Mbps | |
| Inputs/Outputs | ||
| Number/Type | 8 x IO-Link Class A (X1 – X8) Configurable as: Max. 8 IO-Link and 8 digital inputs Max. 16 digital inputs Max. 8 digital inputs and 8 digital outputs short-circuit protected | |
| Sensor supply | Port 1: max. 1.6 A Via L+ (pin 1) Port 3: max. 1 A via L+ (pin 1) Ports 2 and 4 – 8: max. 500 mA per port via L+ (pin 1) | |
| Output rated operating current | max. 200 mA Per port via C/Q (pin 4) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2 , EN 61000-6-4 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Fieldbus standard | Type 1 according to IEC 61131-2, EN 61131-9 | |
| Electrical safety | CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201 | |
| Emitted interference | EN 61000-6-4, FCC Part 15 Subpart B, ICES-001, AS/NZS CISPR 11 | |
| Noise immunity | EN 61000-6-2 , EN 61131-2 , EN 61131-9 | |
| Shock resistance | EN 60068-2-27 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 2000 m | |
| Shock and impact resistance | 15g, 11ms, half-sine | |
| Mechanical specifications | ||
| Housing length | 29.8 mm | |
| Housing width | 65 mm | |
| Housing height | 212 mm | |
| Degree of protection | IP67 | |
| Connection | Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded | |
| Material | ||
| Housing | Molded Polyamide 66 | |
| Mass | 454 g | |
| Tightening torque, fastening screws | 8 Nm | |
| Tightening torque, cable gland | 0.6 Nm | |
| Construction type | Field housing | |
