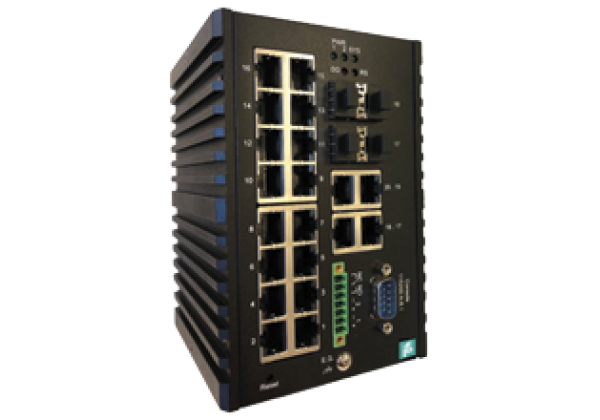

Ethernet switch managed gigabit ICRL-M-16RJ45/4CP-G-DIN
Brand: Pepperl+Fuchs
Code: ICRL-M-16RJ45/4CP-G-DIN
Ethernet managed gigabit switch with 20 RJ45 ports with 4 shared SFP ports
Datasheet excerpt: Technical data of ICRL-M-16RJ45/4CP-G-DIN
| Product Description |
|---|
| Ethernet managed gigabit switch with 20 RJ45 ports with 4 shared SFP ports |
| General specifications | ||
|---|---|---|
| UL File Number | E185778 | |
| Functional safety related parameters | ||
| MTBF | 35.2 years | |
| Ethernet Interface | ||
| Connection type | RJ45 , SFP | |
| Auto-MDI(-X) | yes | |
| Autonegotiation | yes | |
| Ethernet Interface | Industrial Ethernet | |
| Transfer rate | 16 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - SFP 100/1000 Mbps | |
| Management | IPv4, IPv6, Console, HTTP, HTTPS, PortVision DX, SFTP, SNMP (v1, v2c, and v3), SSH, Telnet, TFTP | |
| MIB | MIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB | |
| Monitoring | LLDP, Port Mirroring, RMON | |
| Multicast | IGMP Query, IGMP Snooping, GMRP | |
| Network performance | CFM, Jumbo Frames, QoS, CoSQueue Mapping, DSCP Priority Mapping | |
| Network redundancy | STP, RSTP, MSTP, ERPS, Redundant Ring, LACP, Static Port Aggregation | |
| Network services | DHCP Server (with Option 82), NTP, IEEE 1588 PTPv2 over UDP/IP | |
| Notifications | E-Mail, Fault Relay, SNMP Traps, Syslog | |
| Safety | RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, MAC-Based Port Security | |
| Traffic filtering | Storm Control (Broadcast, Multicast, and DLF), Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering, ARP Filtering | |
| Cable type | Category 5e or better | |
| Switch properties | ||
| Hardware watchdog timer | 10 s reset timer | |
| MAC address table size | 16K | |
| Operating mode | Store and forward | |
| Packet buffer size | 1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data traffic | |
| Priority queues | 4 | |
| VLAN entries | IEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode | |
| SFP support | 100BASE-FX Fiber, 1000BASE-SX/LX/LHX/XD/ZX | |
| Standards | ||
| IEEE 802.3 10BASE-T | yes | |
| IEEE 802.3u 100BASE-TX | yes | |
| IEEE 802.3x Flow Control and Back-pressure | yes | |
| IEEE 802.1p Class of Service (CoS) | yes | |
| IEEE 802.3ab 1000BASE-T | yes | |
| IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | yes | |
| IEEE 802.1Q VLAN and GVRP | yes | |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) | yes | |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | yes | |
| IEEE 802.3ad Link Aggregation Protocol (LACP) | yes | |
| IEEE802.1ad QinQ Tunneling | yes | |
| IEEE 802.1x Port Based Network Access Protocol | yes | |
| ITU-T G.8032 ERPS | yes | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Electrical specifications | ||
| Rated operating voltage | 10... 60 V DC | |
| Power consumption | 25 W | |
| General information | Redundant power, relay output rating 0.5A Max. @ 24V DC | |
| Nominal voltage | 24 V DC | |
| Inputs/Outputs | ||
| Number/Type | 16 x RJ45 , 4 x RJ45 shared with SFP ports , 4 SFP ports | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-6-2, IEC 61000-6-2 , EN 61000-6-4, IEC 61000-6-4 | |
| Standard conformity | ||
| Electrical safety | CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 | |
| Emitted interference | CISPR 22 , FCC Part 15 Subpart B Class A , EN61000-6-4, IEC61000-6-4 | |
| Noise immunity | EN61000-6-2, IEC61000-6-2 | |
| Ambient conditions | ||
| Ambient temperature | -40... 75 °C (-40... 167 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 3048 m | |
| Mechanical specifications | ||
| Housing length | 112 mm | |
| Housing width | 114 mm | |
| Housing height | 147 mm | |
| Degree of protection | IP30 | |
| Connection | Power Supply Terminal Block (6-pin) Ethernet 16 x RJ45, 4 x RJ45 shared SFP, 4 x SFP | |
| Material | ||
| Housing | aluminium, black | |
| Mass | 1380 g | |
| Construction type | Cabinet module | |
| Mounting | DIN rail or direct panel mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
