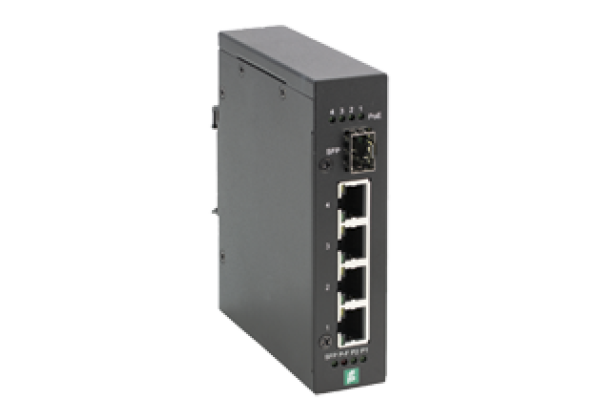

Ethernet switch unmanaged PoE gigabit ICRL-U-4RJ45/SFP-PoE-G-DIN
Brand: Pepperl+Fuchs
Code: ICRL-U-4RJ45/SFP-PoE-G-DIN
Ethernet unmanaged PoE switch with 4 RJ45 gigabit ports, one gigabit SFP slot and fault alarm
Datasheet excerpt: Technical data of ICRL-U-4RJ45/SFP-PoE-G-DIN
| Product Description |
|---|
| Ethernet unmanaged PoE switch with 4 RJ45 gigabit ports, one gigabit SFP slot and fault alarm |
| General specifications | ||
|---|---|---|
| UL File Number | E185778 | |
| Functional safety related parameters | ||
| MTBF | 45.3 a | |
| Ethernet Interface | ||
| Connection type | RJ45, SFP | |
| Auto-MDI(-X) | yes | |
| Autonegotiation | yes | |
| Transfer rate | 4 - 10BASE-T, 100BASE-TX, 1000BASE-T 10/100/1000 Mbps 1 - 100BASE-FX, 1000BASE-FX 100/1000 Mbps | |
| Cable type | Category 5e or better | |
| PoE features | ||
| Type | PoE output Mode: Alternative A | |
| Max. total power | 112 W @ 52 V | |
| Standards | ||
| IEEE 802.3 10BASE-T | yes | |
| IEEE 802.3u 100BASE-TX | yes | |
| IEEE 802.3x Flow Control and Back-pressure | yes | |
| IEEE 802.3ab 1000BASE-T | yes | |
| IEEE802.3af Power over Ethernet (PoE) | yes | |
| IEEE802.3at Power over Ethernet (PoE) Plus | yes | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Electrical specifications | ||
| Rated operating voltage | 44... 57 V DC | |
| Power consumption | 3.6 W @ 60 V DC | |
| General information | Redundant power, polarity reverse protection, power fault alarm, relay output rating 1 A Max. @ 24 V DC | |
| Nominal voltage | 48 V , 60 V | |
| Inputs/Outputs | ||
| Number/Type | 4 x RJ45 , 1 x SFP | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 50121-1:2017 , EN 50121-4:2016 , EN 55032:2015 , EN 55032/A11:2020 , EN 55035:2017/A11:2020 , EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 50121-4 | |
| Electrical safety | CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950 | |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | EN 55032, EN61000-6-2 | |
| Ambient conditions | ||
| Ambient temperature | -40... 75 °C (-40... 167 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 3048 m | |
| Mechanical specifications | ||
| Housing length | 99 mm | |
| Housing width | 30 mm | |
| Housing height | 120 mm | |
| Degree of protection | IP30 | |
| Connection | Power Supply Terminal Block Ethernet 4 x RJ45 , 1 x SFP | |
| Material | ||
| Housing | Aluminum | |
| Mass | 650 g | |
| Construction type | Cabinet module | |
| Mounting | DIN rail or direct panel mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
