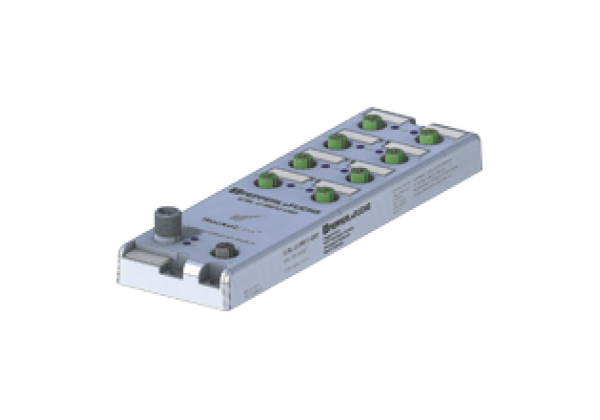

Ethernet switch unmanaged ICRL-U-8M12-G60
Brand: Pepperl+Fuchs
Code: ICRL-U-8M12-G60
Ethernet unmanaged IP67 switch with 8 M12 ports and extended temperature range
Datasheet excerpt: Technical data of ICRL-U-8M12-G60
| Product Description |
|---|
| Ethernet unmanaged IP67 switch with 8 M12 ports and extended temperature range |
| Functional safety related parameters | ||
|---|---|---|
| MTBF | 6779960 hours (25 °C), 2716143 hours (60°C) | |
| Ethernet Interface | ||
| Connection type | M12, D-coded | |
| Auto-MDI(-X) | yes | |
| Autonegotiation | yes | |
| Transfer rate | 10BASE-T, 100BASE-TX 10/100 Mbps | |
| Cable type | Category 5e or better | |
| Standards | ||
| IEEE 802.3 10BASE-T | yes | |
| IEEE 802.3u 100BASE-TX | yes | |
| IEEE 802.3x Flow Control and Back-pressure | yes | |
| IEEE 802.1p Class of Service (CoS) | yes | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Electrical specifications | ||
| Rated operating voltage | 9.6... 45 V DC | |
| Power consumption | 4.2 W | |
| General information | A-Coded M12 power | |
| Nominal voltage | 12 V , 24 V , 36 V | |
| Inputs/Outputs | ||
| Number/Type | 8 x M12 (Fast Ethernet) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 55032:2015 , EN 61000-6-2:2005 , EN 61131-2:2007 , EN 50121-4:2016 , EN 55032:2015+A11:2020 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 | |
| Standard conformity | ||
| Electrical safety | IEC 61010 | |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Shock resistance | IEC 60068-2-27 | |
| Permanent shock resistance | IEC 60068-2-64 | |
| Vibration resistance | IEC 60068-2-6 | |
| Standards | EN 50155 | |
| Approvals and certificates | ||
| UL approval | E223772 , E492874 | |
| E1 Type approval | E1*118R03/02*0254*02 | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 100 % | |
| Mechanical specifications | ||
| Housing length | 31 mm | |
| Housing width | 60 mm | |
| Housing height | 200 mm | |
| Degree of protection | IP65 , IP67 | |
| Connection | Power Supply M12 A-coded Ethernet 8 x M12 D-coded | |
| Material | ||
| Housing | Aluminum | |
| Mass | 470 g | |
| Construction type | Field housing | |
| Mounting | Field mounted | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
