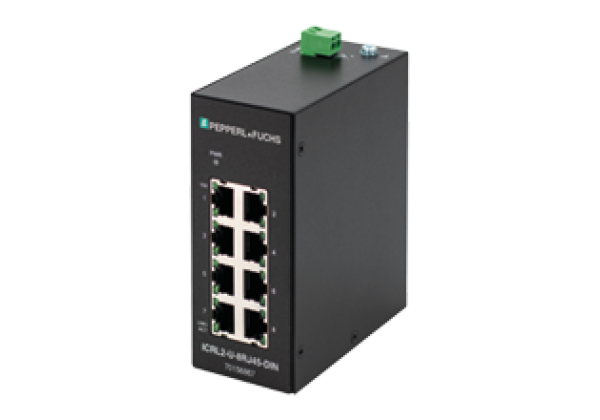

Ethernet switch unmanaged ICRL2-U-8RJ45-DIN
Brand: Pepperl+Fuchs
Code: ICRL2-U-8RJ45-DIN
Ethernet unmanaged switch with 8 RJ45 ports and extended temperature range
Datasheet excerpt: Technical data of ICRL2-U-8RJ45-DIN
| Product Description |
|---|
| Ethernet unmanaged switch with 8 RJ45 ports and extended temperature range |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| MTBF | 706 | |
| Ethernet Interface | ||
| Number of ports | 8 | |
| Auto-MDI(-X) | yes | |
| Autonegotiation | yes | |
| Ethernet Interface | Industrial Ethernet | |
| Transfer rate | 10BASE-T, 100BASE-TX | |
| Network performance | Jumbo frame size: 1552 bytes Broadcast storm protection for broadcast packet | |
| Cable type | Category 5e or better | |
| Switch properties | ||
| MAC address table size | 1K | |
| Standards | ||
| IEEE 802.3 10BASE-T | yes | |
| IEEE 802.3u 100BASE-TX | yes | |
| IEEE 802.3x Flow Control and Back-pressure | yes | |
| Indicators/operating means | ||
| LED indication | see manual | |
| Electrical specifications | ||
| Rated operating voltage | 12... 48 V DC | |
| Power consumption | 3 W | |
| General information | Current overload protection, Power input polarity protection | |
| Nominal voltage | 24 V DC | |
| Current consumption | typ. 7 mA | |
| Interface 1 | ||
| Physical | RJ45 | |
| Transfer rate | 10/100 Mbps | |
| Inputs/Outputs | ||
| Number/Type | 8 x RJ45 | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61000-4-2:2009, IEC 61000-4-2:2008 EN IEC 61000-4-3:2020, IEC 61000-4-3:2020 EN 61000-4-4:2012, IEC 61000-4-4:2012 EN 61000-4-5:2014+A1:2017, IEC 61000-4-5:2014+A1:2017 EN 61000-4-6:2014+AC:2015, IEC 61000-4-6:2013+COR1:2015 EN 61000-4-8:2010, IEC 61000-4-8:2009 EN IEC 61000-6-4:2019 | |
| Standard conformity | ||
| Electrical safety | CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201 | |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 | |
| Noise immunity | EN 55035:2017/A11:2020 | |
| Shock resistance | EN 60068-2-27 | |
| Vibration resistance | IEC 60068-2-6 | |
| Ambient conditions | ||
| Ambient temperature | -40... 75 °C (-40... 167 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0... 3048 m | |
| Mechanical specifications | ||
| Degree of protection | IP30 | |
| Connection | Power Supply Terminal Block Ethernet 8 x RJ45 | |
| Material | ||
| Housing | Aluminum | |
| Mass | 435 g | |
| Construction type | Cabinet module | |
| Mounting | DIN rail or direct panel mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 10.0.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 5.1 | 27242608 |
| ETIM 9.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 6.0 | EC001597 |
| ETIM 5.0 | EC001597 |
| UNSPSC 12.1 | 32151705 |
