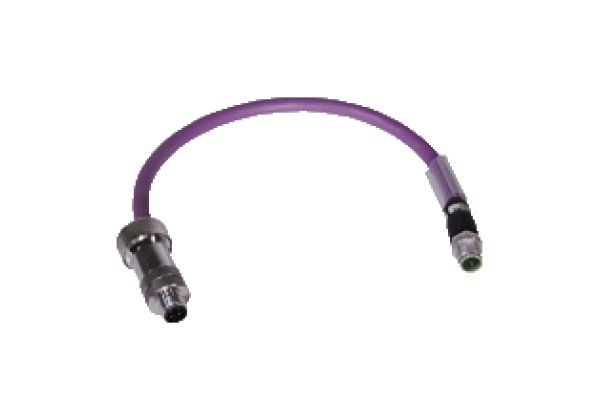

Terminal cable ICZ-2T/TR-0,2M-PUR ABG-V15B-G
Brand: Pepperl+Fuchs
Code: ICZ-2T/TR-0,2M-PUR ABG-V15B-G
Terminal cable for PROFIBUS with terminal resistor
Datasheet excerpt: Technical data of ICZ-2T/TR-0,2M-PUR ABG-V15B-G
| Product Description |
|---|
| Terminal cable for PROFIBUS with terminal resistor |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + 1 x screen | |
| Transfer rate | max. 12 MBit/s | |
| Directive conformity | ||
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 4-pin M12 connector/socket, B-coded for PROFIBUS | |
| Material | ||
| Contacts | CuZn, gold-plated | |
| Body | PUR / PA 66 | |
| Cable | PUR | |
| Slotted nut | CuZn, nickel-plated | |
| Cable | ||
| Sheath diameter | ∅ 8 mm | |
| Color | violet | |
| Cores | 2 x 0.64 mm2 | |
| Length | approx. 28 cm | |
| Mass | approx. 90 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27260190 |
| ECLASS 12.0 | 19070403 |
| ECLASS 11.0 | 19070403 |
| ECLASS 10.0.1 | 19070403 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279290 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
