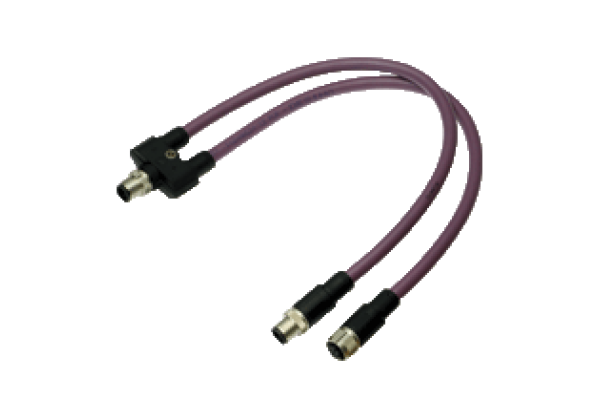

Y connection cable ICZ-3T-0,3M-PUR ABG-V15B-G
Brand: Pepperl+Fuchs
Code: ICZ-3T-0,3M-PUR ABG-V15B-G
Y connection cable for PROFIBUS
Datasheet excerpt: Technical data of ICZ-3T-0,3M-PUR ABG-V15B-G
| Product Description |
|---|
| Y connection cable for PROFIBUS |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + 1 x screen | |
| Transfer rate | max. 12 MBit/s | |
| Electrical specifications | ||
| Rated voltage | 30 V | |
| Rated current | 4 A | |
| Volume resistance | ≤ 5 mΩ | |
| Ambient conditions | ||
| Ambient temperature | Body: -25... 90 °C (-13... 194 °F) cable, fixed: -40... 80 °C (-40... 176 °F) cable, flexing: -20... 80 °C (-4... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 4-pin M12 connector/socket, B-coded for PROFIBUS | |
| Material | ||
| Contacts | CuSn | |
| Contact surface | Ni/Au | |
| Body | TPU, black | |
| Cable | PUR | |
| Slotted nut | Zinc die-casting, nickel-plated | |
| Core insulation | PE | |
| Cable | ||
| Sheath diameter | ∅ 7.8 mm | |
| Bending radius | > 10 x cable diameter, moving | |
| Color | violet | |
| Cores | 2 x 0.25 mm2 | |
| Length | 0.3 m | |
| Mass | approx. 105 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440106 |
| ECLASS 12.0 | 27440106 |
| ECLASS 11.0 | 27440112 |
| ECLASS 10.0.1 | 27440112 |
| ECLASS 9.0 | 27440106 |
| ECLASS 8.0 | 27440312 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
