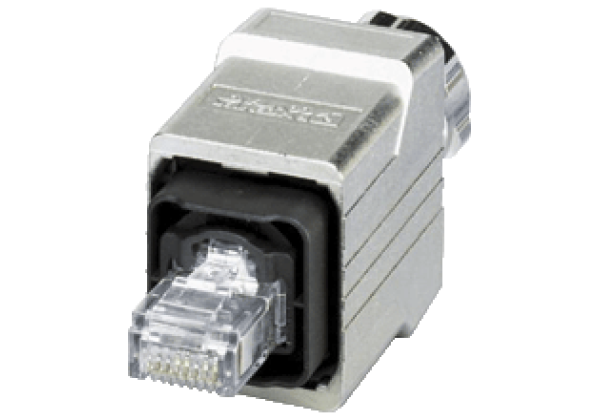

Connector ICZ-AIDA1-V45
Brand: Pepperl+Fuchs
Code: ICZ-AIDA1-V45
Plug connector for RJ-45
Datasheet excerpt: Technical data of ICZ-AIDA1-V45
| Product Description |
|---|
| Plug connector for RJ-45 |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Electrical specifications | ||
| Rated current | 1.75 A | |
| Nominal voltage | 50 V | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | CAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001) | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | RJ-45 | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Housing | Zinc diecast, nickel-plated | |
| Cable | ||
| Sheath diameter | 5 mm … 8 mm | |
| Core diameter | 0.13 mm² … 0.32 mm² (solid) 0.14 mm² … 0.36 mm² (stranded) 26 … 22 AWG (solid/stranded) | |
| Mass | 68 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 270603 |
| ECLASS 12.0 | 27060307 |
| ECLASS 11.0 | 27060307 |
| ECLASS 10.0.1 | 27060307 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
