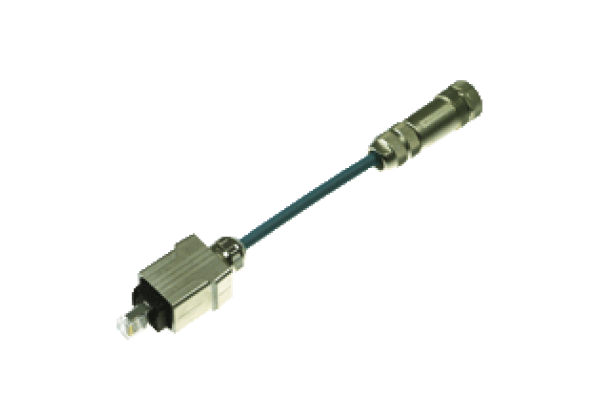

Connection cable ICZ-AIDA1-V45-0,2M-PUR-V1D-G
Brand: Pepperl+Fuchs
Code: ICZ-AIDA1-V45-0,2M-PUR-V1D-G
Connecting cable RJ-45 to M12 D-coded
Datasheet excerpt: Technical data of ICZ-AIDA1-V45-0,2M-PUR-V1D-G
| Product Description |
|---|
| Connecting cable RJ-45 to M12 D-coded |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Electrical specifications | ||
| Rated current | 1.75 A | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | 8-pin RJ-45, D-coded to 4-pin M12 socket | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Housing | Zinc die-casting, nickel-plated | |
| Body | Zinc die-casting, nickel-plated | |
| Cable | ||
| Sheath diameter | 5.8 mm | |
| Color | water blue (RAL 5021) | |
| Cores | 4 x 26 AWG | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 270603 |
| ECLASS 12.0 | 27060307 |
| ECLASS 11.0 | 27060307 |
| ECLASS 10.0.1 | 27060307 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
