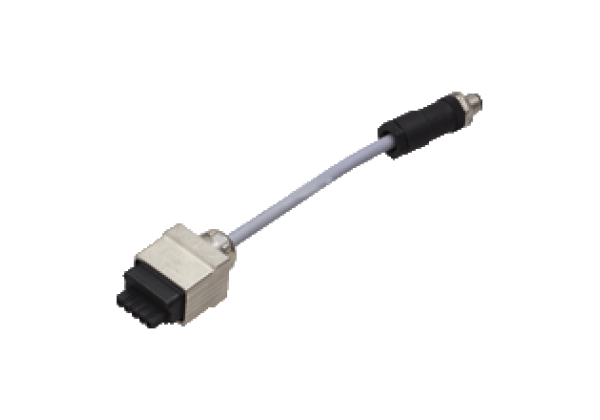

Connection cable ICZ-AIDA2-MSTB-0,2M-PUR-V1-G
Brand: Pepperl+Fuchs
Code: ICZ-AIDA2-MSTB-0,2M-PUR-V1-G
Connection cable MSTB to M12 connector
Datasheet excerpt: Technical data of ICZ-AIDA2-MSTB-0,2M-PUR-V1-G
| Product Description |
|---|
| Connection cable MSTB to M12 connector |
| General specifications | ||
|---|---|---|
| Number of pins | 2 | |
| Electrical specifications | ||
| Operating current | max. 4 A | |
| Nominal voltage | 24 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 5-pin Combicon socket on 4-pin M12 connector | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | CuSnZn | |
| Housing | Zinc die-casting, nickel-plated | |
| Connector | CuZn | |
| Body | PA | |
| Cable | ||
| Sheath diameter | 7.8 mm | |
| Color | grey | |
| Cores | 2 x 1.5 mm2 | |
| Mass | 123 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 270603 |
| ECLASS 12.0 | 27060307 |
| ECLASS 11.0 | 27060307 |
| ECLASS 10.0.1 | 27060307 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
