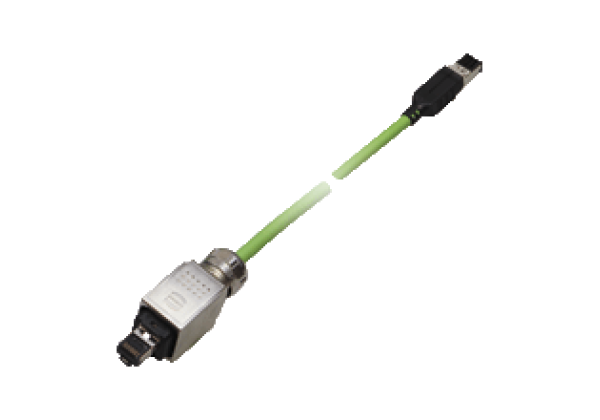

Connection cable ICZ-AIDA2-V45-5M-PUR-V45-G
Brand: Pepperl+Fuchs
Code: ICZ-AIDA2-V45-5M-PUR-V45-G
Connecting cable RJ-45 to RJ-45, PUR cable 4-pole, CAT5e
Datasheet excerpt: Technical data of ICZ-AIDA2-V45-5M-PUR-V45-G
| Product Description |
|---|
| Connecting cable RJ-45 to RJ-45, PUR cable 4-pole, CAT5e |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Electrical specifications | ||
| Operating voltage | max. 50 V | |
| Rated current | max. 500 mA | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | Ethernet: RJ-45 , Category 5 , up to 100 MHz | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Housing | Zinc die-casting, nickel-plated | |
| Body | Zinc die-casting, nickel-plated | |
| Cable | PUR | |
| Cable | ||
| Sheath diameter | 5.8 mm | |
| Color | green | |
| Cores | 2 x 2 x 26 AWG | |
| Length | 5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 270603 |
| ECLASS 12.0 | 27060307 |
| ECLASS 11.0 | 27060307 |
| ECLASS 10.0.1 | 27060307 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
