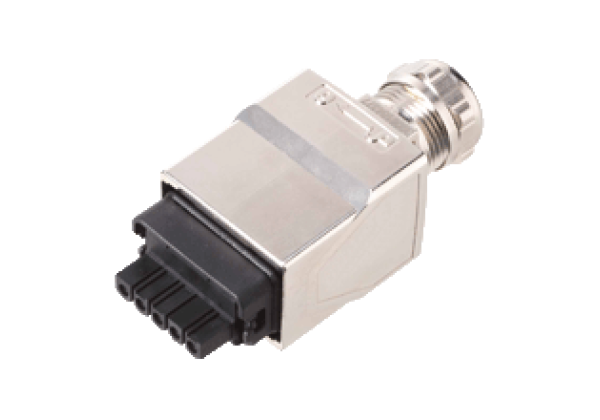

Connector ICZ-AIDA3-MSTB
Brand: Pepperl+Fuchs
Code: ICZ-AIDA3-MSTB
MSTB connector, lockable
Datasheet excerpt: Technical data of ICZ-AIDA3-MSTB
| Product Description |
|---|
| MSTB connector, lockable |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Electrical specifications | ||
| Rated current | 16 A | |
| Nominal voltage | 24 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | MSTB | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Housing | Zinc die-casting, nickel-plated | |
| Cable | ||
| Sheath diameter | 6.5 mm … 9 mm | |
| Core diameter | 0.75 mm² … 2.5 mm² 18 … 13 AWG | |
| Mass | 108.5 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
