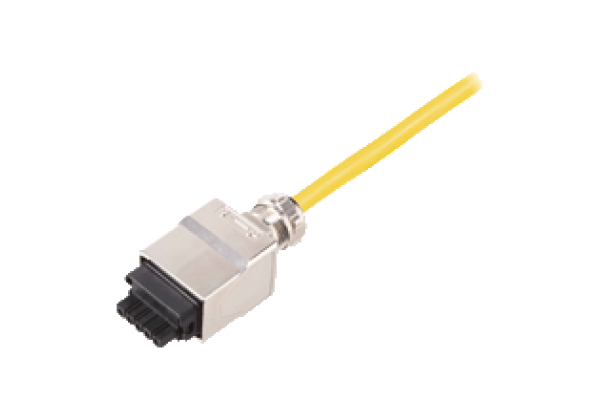

Connection cable ICZ-AIDA3-MSTB-5M-PUR
Brand: Pepperl+Fuchs
Code: ICZ-AIDA3-MSTB-5M-PUR
Connection cable MSTB to cable tail
Datasheet excerpt: Technical data of ICZ-AIDA3-MSTB-5M-PUR
| Product Description |
|---|
| Connection cable MSTB to cable tail |
| General specifications | ||
|---|---|---|
| Number of pins | 2 | |
| Electrical specifications | ||
| Rated current | 16 A | |
| Nominal voltage | 24 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 5-pin Combicon socket to open cable end | |
| Material | ||
| Housing | Zinc die-casting, nickel-plated | |
| Core insulation | TPE | |
| Cable | ||
| Sheath diameter | 10 mm | |
| Bending radius | > 10 x cable diameter, moving > 4 x cable diameter, fixed | |
| Color | yellow (RAL 1016) | |
| Cores | 2 x 2.5 mm2 | |
| Length | 5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
