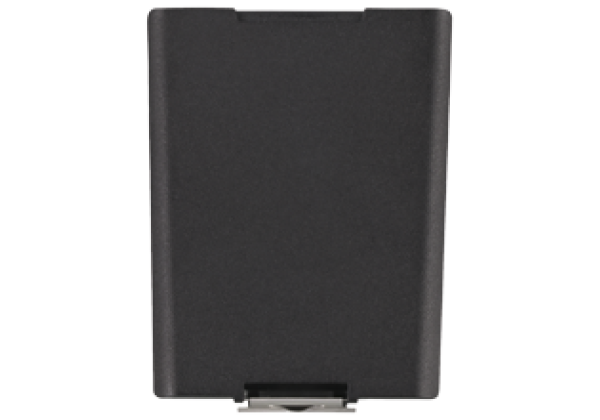

Lithium ion battery ICZ-HH50-BAT
Brand: Pepperl+Fuchs
Code: ICZ-HH50-BAT
Replacement battery for IC-HH51 and IC-HH52
Datasheet excerpt: Technical data of ICZ-HH50-BAT
| Product Description |
|---|
| Replacement battery for IC-HH51 and IC-HH52 |
| Electrical specifications | ||
|---|---|---|
| Battery type | Lithium ion battery: 3.8 V; 6000 mAh | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 55032 EN 55035 | |
| Standard conformity | ||
| Electromagnetic compatibility | ||
| Safety | IEC 62133-2 | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 35 °C (-4... 95 °F) (max. six months) | |
| Charging temperature | 5... 45 °C (41... 113 °F) | |
| Mechanical specifications | ||
| Housing length | 79.5 mm | |
| Housing width | 62.3 mm | |
| Housing height | 19 mm | |
| Material | ||
| Housing | Plastic ABS | |
| Mass | approx. 110 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27050403 |
| ECLASS 12.0 | 27050403 |
| ECLASS 11.0 | 27050403 |
| ECLASS 10.0.1 | 27050403 |
| ECLASS 9.0 | 27050403 |
| ECLASS 8.0 | 27050403 |
| ECLASS 5.1 | 27059090 |
| ETIM 8.0 | EC000357 |
| ETIM 7.0 | EC000357 |
| ETIM 6.0 | EC000357 |
| ETIM 5.0 | EC001199 |
| UNSPSC 12.1 | 26111701 |
