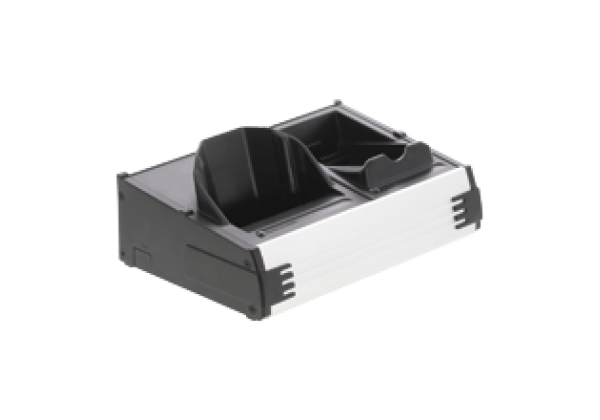

Docking station ICZ-HH50-CHARGER
Brand: Pepperl+Fuchs
Code: ICZ-HH50-CHARGER
Docking station for IC-HH51 and IC-HH52
Datasheet excerpt: Technical data of ICZ-HH50-CHARGER
| Product Description |
|---|
| Docking station for IC-HH51 and IC-HH52 |
| Indicators/operating means | ||
|---|---|---|
| LED red/green | Power: green/off Charge: green/red Connect: green/off | |
| Input | ||
| Input voltage | 100 V AC... 240 V AC 47... 63 Hz | |
| Input current | max. 1 A | |
| Output | ||
| Output rated operating current | 2.4 A | |
| Output voltage | 15 V DC | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 301489-1 EN 55032 EN 55024 | |
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 40 °C (32... 104 °F) | |
| Storage temperature | -20... 60 °C (-4... 140 °F) | |
| Mechanical specifications | ||
| Housing length | 138 mm | |
| Housing width | 200 mm | |
| Housing height | 82 mm | |
| Degree of protection | IP20 | |
| Connection | Ethernet: RJ-45 USB 2.0 (Type A) | |
| Material | ||
| Housing | aluminum / ABS | |
| Mass | approx. 557 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280492 |
| ECLASS 12.0 | 27280492 |
| ECLASS 11.0 | 27280492 |
| ECLASS 10.0.1 | 27280492 |
| ECLASS 9.0 | 27280492 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC002997 |
| ETIM 8.0 | EC002997 |
| ETIM 7.0 | EC002997 |
| ETIM 6.0 | EC002997 |
| ETIM 5.0 | EC002997 |
| UNSPSC 12.1 | 43211710 |
