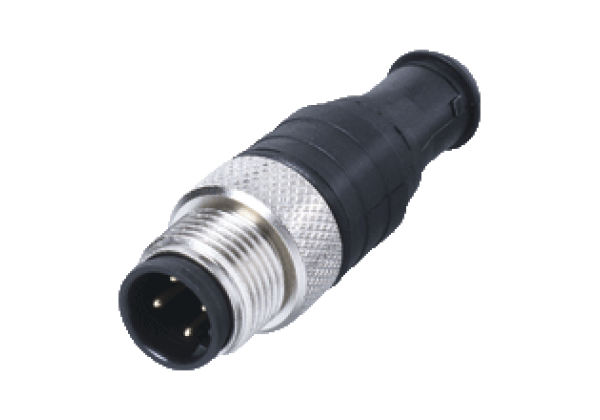

Terminal resistor ICZ-TR-V15B
Brand: Pepperl+Fuchs
Code: ICZ-TR-V15B
Terminal resistor for PROFIBUS
Datasheet excerpt: Technical data of ICZ-TR-V15B
| Product Description |
|---|
| Terminal resistor for PROFIBUS |
| Directive conformity | ||
|---|---|---|
| RoHS | ||
| Directive 2011/65/EU (RoHS) | IEC/EN 63000 | |
| Mechanical specifications | ||
| Connection | 4-pin M12 connector, B-coded for PROFIBUS | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27260190 |
| ECLASS 12.0 | 19070403 |
| ECLASS 11.0 | 19070403 |
| ECLASS 10.0.1 | 19070403 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279290 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
