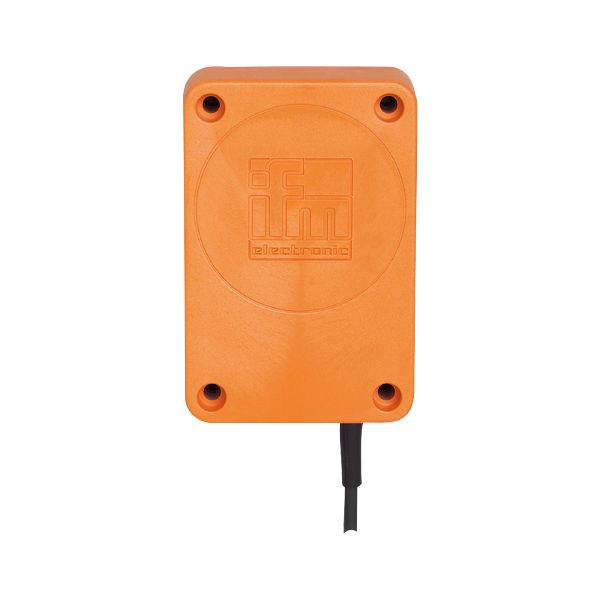

ID0015 - efector100-ID-2050-BBOA
Brand: IFM Electronic
Code: ID0015
- Very long sensing range
- Easy setting of the sensing range via potentiometer
- Large active sensor face
- With combined AC/DC output and two-wire technology
- Robust housing for use in harsh industrial environments
Product characteristics
| Output function | normally closed |
|---|---|
| Sensing range [mm] | 50 |
| Housing | rectangular |
| Dimensions [mm] | 120 x 80 x 30 |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally closed |
|---|---|
| Max. voltage drop switching output DC [V] | 5 |
| Max. voltage drop switching output AC [V] | 5.5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 35 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 50 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 50 |
| Real sensing range Sr [mm] | 50 ± 10 % |
| Operating distance [mm] | 0...40.5 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 512 |
Mechanical data
| Weight [g] | 592 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 120 x 80 x 30 |
| Materials | PPE modified |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 2 m, PVC; 2 x 0.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID0015-00 — 13.04.2023 —
