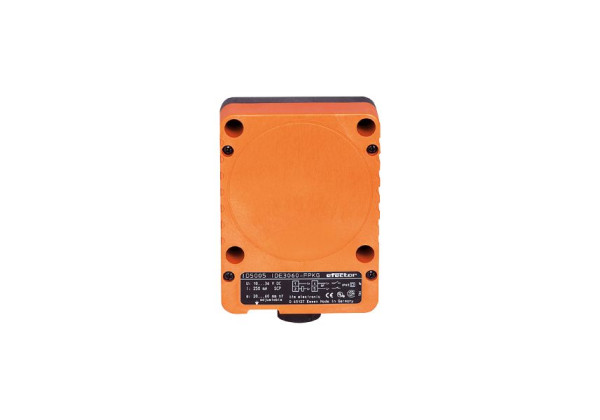

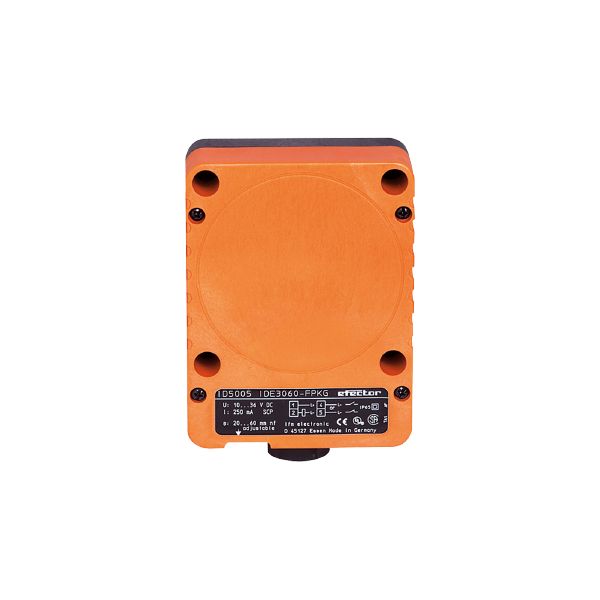

ID5005 - efector100-IDE3060-FPKG

Code: ID5005

Very long sensing range
Large active sensor face
Easy setting of the sensing range via potentiometer
Output function normally open / normally closed programmable
Robust housing for use in harsh industrial environments

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Sensing range [mm]	60
Housing	rectangular
Dimensions [mm]	105 x 80 x 40

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	60
Sensing range adjustable	yes
Factory setting sensing range [mm]	60
Real sensing range Sr [mm]	60 ± 10 %
Operating distance [mm]	0...48.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC

EN 61000-4-2 ESD	- CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

1277

UL approval

Ta	0...40 °C
Enclosure type	Type 1
power supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight [g]	434
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	105 x 80 x 40
Materials	PPE

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

screwdriver: 1

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals:...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
