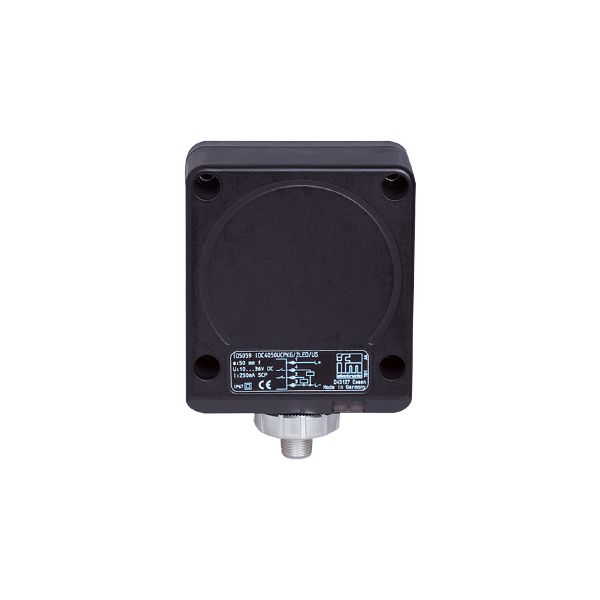

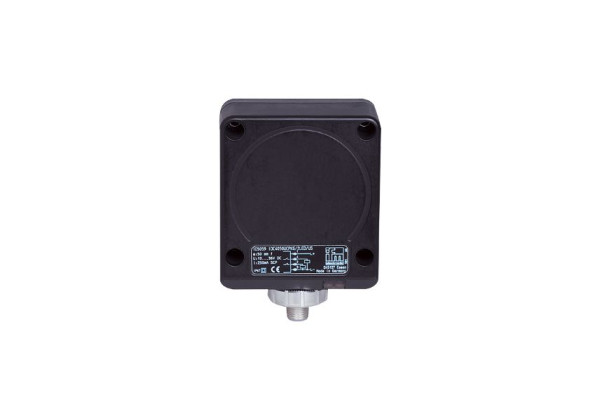

ID5059 - efector100-IDC4050UCPKG/SC/2LED/US-100DPA
Brand: IFM Electronic
Code: ID5059
- Magnetic-field immune for welding applications
- Very long sensing range and large active sensor face
- LED display to check switching status and operation
- Robust housing for use in harsh industrial environments
- Complementary output function NO/NC
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 50 |
| Housing | rectangular |
| Dimensions [mm] | 92 x 80 x 40 |
Application
| Special feature | anti-spatter |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 20; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 70 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 50 |
|---|---|
| Operating distance [mm] | 0...40.5; (mounted flush with mild steel (ST37)) |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38 |
|---|---|
| Hysteresis [% of Sr] | 3...20 |
| Switch point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1162 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 422.5 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Type of mounting | rail; (TH35 (EN 60715)) |
| Dimensions [mm] | 92 x 80 x 40 |
| Materials | PPE anti-spatter; brass white bronze coated; diecast zinc |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID5059-00 — 13.04.2023 —
