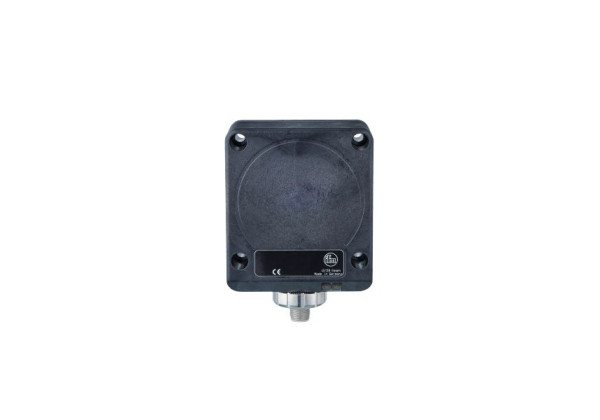

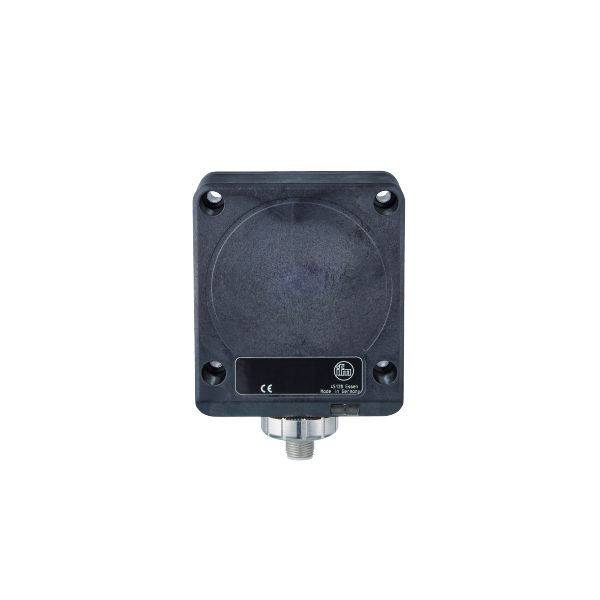

ID5075 Inductive sensor IDC3050BANKG/US

Code: ID5075

Long sensing range for use in conveying
Robust housing for use in harsh industrial environments
Clearly visible indication of the switching status

Product characteristics

Electrical design	NPN
Output function	normally open
Sensing range [mm]	50
Housing	rectangular
Dimensions [mm]	92 x 80 x 40

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	4
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	50
Operating distance [mm]	0...40.5; (mounted flush with mild steel (ST37))

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011

MTTF [years]

2225

Mechanical data

Weight [g]	418
Housing	rectangular
Mounting	flush mountable
Type of mounting	rail; (TH35 (EN 60715))
Dimensions [mm]	92 x 80 x 40
Materials	PPE; diecast zinc nickel-plated

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Accessories

Items supplied

sealing plug: 1

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
