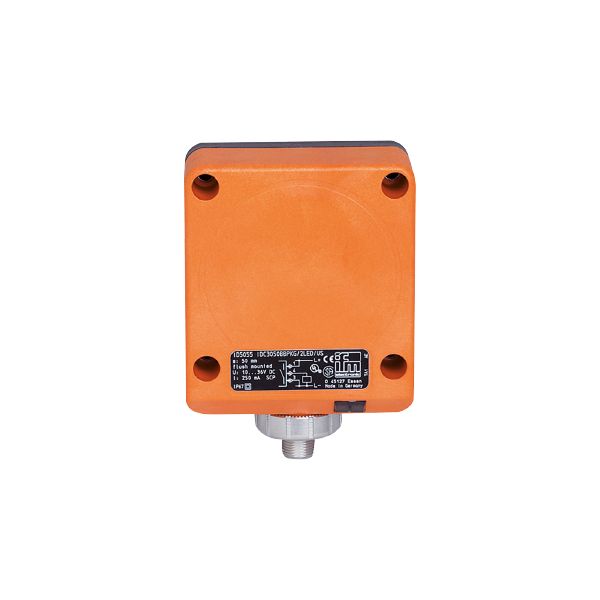

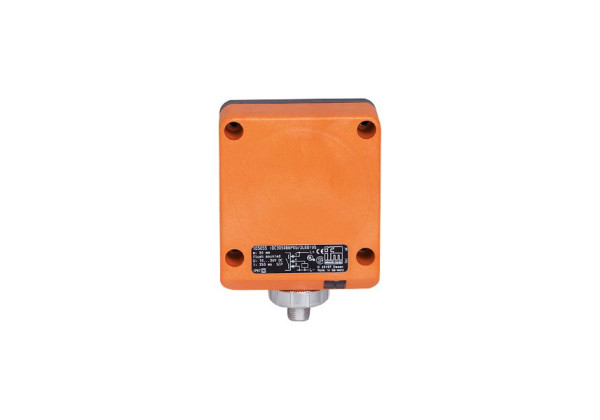

ID9922 - efector100-IDC2050BARKG/UP/US-100 RT

Code: ID9922

Very long sensing range
Large active sensor face
Two-wire technology
Robust housing for use in harsh industrial environments
With robust M12 connector

Product characteristics

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	50
Housing	rectangular
Dimensions [mm]	92 x 80 x 40

Electrical data

Operating voltage [V]	10...55 DC
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	4.6
Minimum load current [mA]	4
Max. leakage current [mA]	0.6
Permanent current rating of switching output DC [mA]	400
Switching frequency DC [Hz]	90
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	50
Operating distance [mm]	0...40.5; (mounted flush with mild steel (ST37))

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	3...20
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

1631

Mechanical data

Weight [g]	399
Housing	rectangular
Mounting	flush mountable
Type of mounting	rail; (TH35 (EN 60715))
Dimensions [mm]	92 x 80 x 40
Materials	PPE; brass nickel-plated

Displays / operating elements

Display

switching status

1 x LED, red

Accessories

Items supplied

sealing plug: 1

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ID9922-00 — 13.04.2023 —
