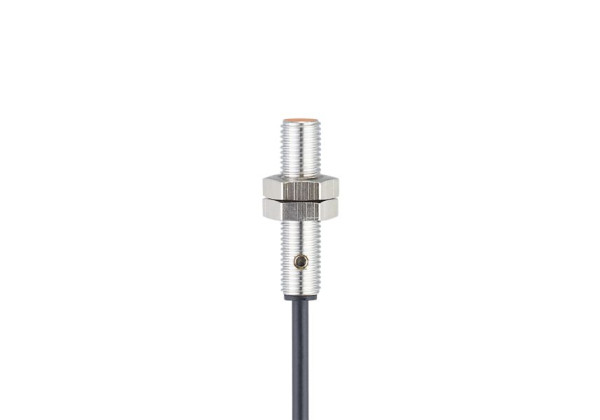

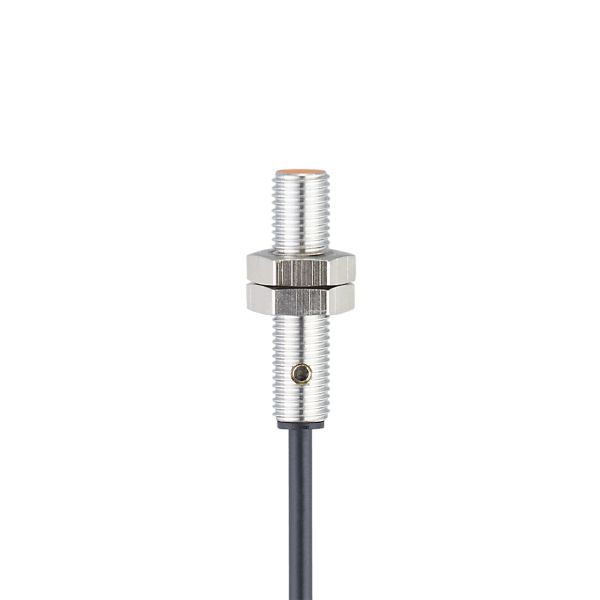

IE5199 - efector100-IEB3001-BPOG/PH

Code: IE5199

Particularly short housing
For use where space is restricted
Space-saving connection technology
Robust metal housing for use in harsh industrial environments
Very high switching frequency

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 35

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	10; (24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design

PNP

Output function

normally open

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

200

Switching frequency DC [Hz]

750

Notes on switching frequency [Hz]

1000 nb

Short-circuit protection

yes

Overload protection

yes

Detection zone

Sensing range [mm]	1
Real sensing range Sr [mm]	1 ± 10 %
Operating distance [mm]	0...0.8

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

2804

Mechanical data

Weight [g]	47
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 35
Thread designation	M8 x 1
Materials	brass nickel-plated; PBT
Tightening torque [Nm]	A = 5 mm: 1 Nm; B: 2 Nm

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; highly flexible; 3 x 0.14 mm²

Diagrams and graphs

Installation
