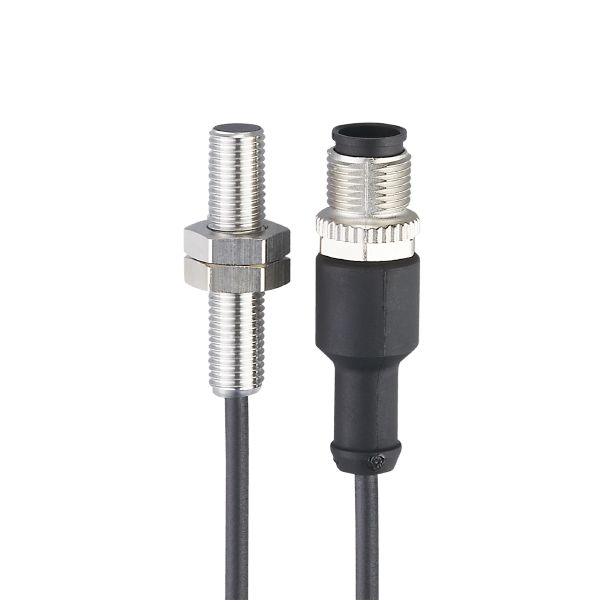

IE5324 - efector100-IEB3002BBPKG/0,8M/FH/US100DPSR
Brand: IFM Electronic
Code: IE5324
- Particularly short housing
- For use where space is restricted
- Space-saving cable with M12 connector
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | threaded type |
| Dimensions [mm] | M8 x 1 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 15; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-time current rating of switching output [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.62 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 2804 |
Mechanical data
| Weight [g] | 39.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M8 x 1 |
| Thread designation | M8 x 1 |
| Materials | brass white bronze coated; LCP |
| Tightening torque [Nm] | A = 5 mm: 1 Nm; B: 2 Nm |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.8 m, PUR; flame-retardant (FRNC); 3 x 0.14 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A; Locking: rotatable |
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IE5324-01 — 13.04.2023 —
