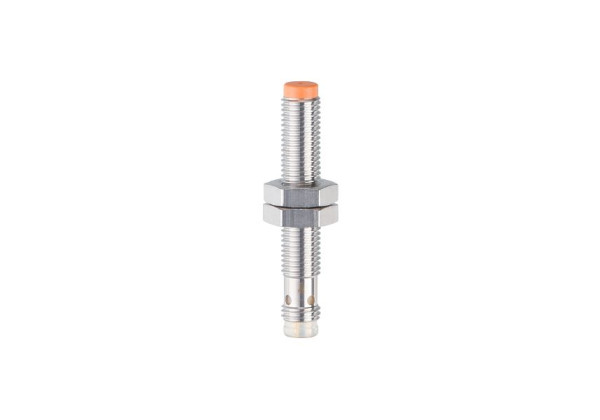

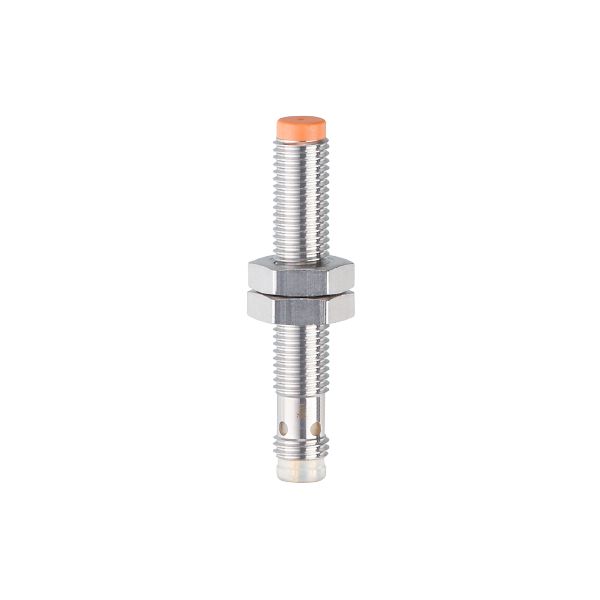

IE5339 Inductive sensor IEB30,2-BPKG/AS
Brand: IFM Electronic
Code: IE5339
- For use where space is restricted
- Clearly visible indication of the switching status
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
- Short sensing range with very high precision
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 0.2; (for target made of mild steel) |
| Housing | threaded type |
| Dimensions [mm] | M8 x 1 / L = 50 |
Application
| Special feature | Increased sensing range |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 300 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 0.2; (for target made of mild steel) |
|---|---|
| Real sensing range Sr [mm] | 0.2 ± 10 % |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [mm] | 0.002...0.025 |
| Switch point drift [mm] | > 0.04 |
| Repeatability [mm] | < 0.015 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|---|
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Impact resistance |
| ||||||||||
| Vibration resistance |
| ||||||||||
| Shock resistance |
| ||||||||||
| Continuous shock resistance |
| ||||||||||
| Fast temperature change |
| ||||||||||
| Salt spray test |
| ||||||||||
| MTTF [years] | 1379 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 18.8 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M8 x 1 / L = 50 |
| Thread designation | M8 x 1 |
| Materials | brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated |
| Tightening torque [Nm] | A = 5 mm: 1,5 Nm; B = 2 Nm |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M8; coding: A |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IE5339-02 — 13.04.2023 —
