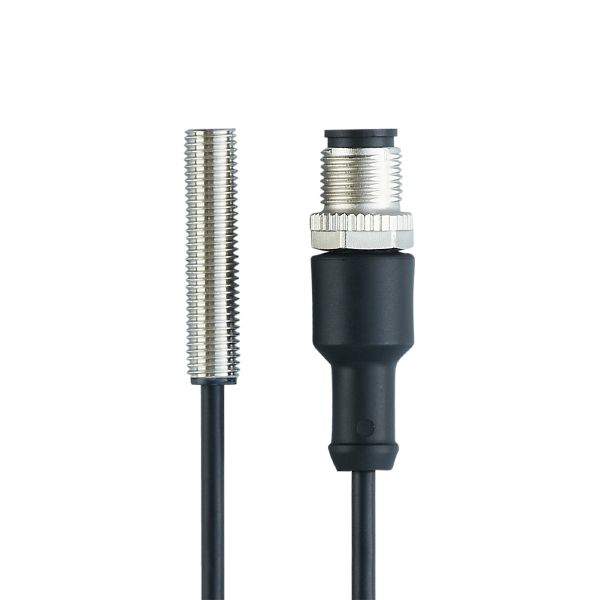

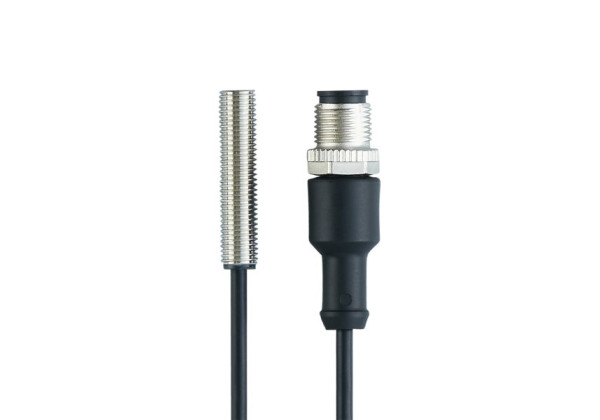

IE5351 - efector100-IEBC003BASKG/0,3M/US
Brand: IFM Electronic
Code: IE5351
- Particularly short housing
- For use where space is restricted
- Space-saving cable with M12 connector
- Long sensing range for high uptime
- Reduced stock-keeping due to operation as three-wire or two-wire unit
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 3 |
| Housing | threaded type |
| Dimensions [mm] | M8 x 1 / L = 37 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10; (only in 3-wire operation) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.8 |
| Minimum load current [mA] | 2; (only in 2-wire operation) |
| Max. leakage current [mA] | 0.5; (only in 2-wire operation) |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 3 |
|---|---|
| Operating distance [mm] | 0...2.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1517 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 31.2 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M8 x 1 / L = 37 |
| Thread designation | M8 x 1 |
| Materials | brass white bronze coated; sensing face: LCP |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Cable: 0.3 m, PVC; 3 x 0.14 mm² | |
| Connector: 1 x M12; coding: A; Locking: rotatable |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IE5351-00 — 13.04.2023 —
