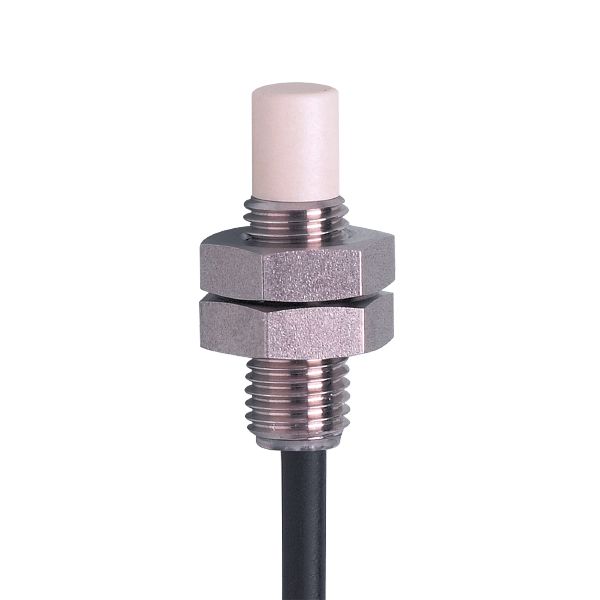

IE5369 - efector100-IEB3004-BPKG/V4A/2M

Code: IE5369

Particularly short housing
For use where space is restricted
Space-saving connection technology
Very high switching frequency
Robust stainless steel housing for use in harsh industrial environments

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	4
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 27

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	4
Real sensing range Sr [mm]	4 ± 10 %
Operating distance [mm]	0...3.25

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	0...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

3408

UL approval

Ta	0...60 °C
Enclosure type	Type 1
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	45.2
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M8 x 1 / L = 27
Thread designation	M8 x 1
Materials	stainless steel; sensing face: LCP

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IE5369-00 — 13.04.2023 —
